Marshall Electronics

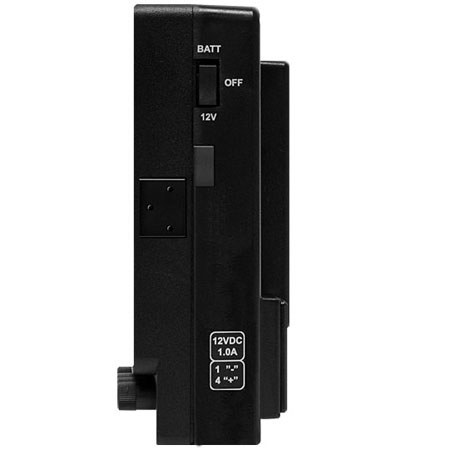

Marshall Electronics 7" High Brightness Field/Camera-Top LCD Monitor with Composite, Component and HDMI Inputs, Canon Battery Mount

SKU: MAR7HCBMCBM MFR: V-LCD70XHB-HDIPT-CM
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,199.00 List Price

Our Price

$1,010.85
Free Shipping
Qty:
Add to Wishlist

About this item

The Marshall Electronics 7" Field / Camera-Top LCD Monitor (Canon) has an integrated HDMI loop-through, which allows a user to pass through an HDMI video input to another monitor for a second user e.g. a client, director, focus puller or crew/talent member on-location. By splitting the signal, the built-in HDMI loop-through eliminates the need for separate HDMI splitters and additional power sources.

The monitor delivers high-quality images at a resolution up to 800 x 480 pixels and features a luminance of 800cd/m2 and a contrast ratio of 800:1 to produce sharper images by displaying the finer elements of a picture.

Equipped with pixel-to-pixel mode, the Field / Camera-Top LCD Monitor displays images in their native resolution by avoiding the internal scaling function. With aspect ratio settings, you can precisely monitor different aspect ratios in 15:9, 16:9 and 4:3 modes.

DSLR ratio adjustment allows you to scale the video output and fill the monitor's screen, thereby eliminating black pillars. The display provides you with various options such as Normal, 3:2, 16:9 and Full screen and the ratio adjustment feature can be programmed to one of the front panel's four-button presets for quick access.

With RGB bias and gain function, the LCD monitor allows for fine-tuning of color balance levels and facilitates color matching with other types of monitors. False color filter helps set the camera exposure and peaking filter assists the user in focusing and obtaining the sharpest picture. Other features of the 7" Field / Camera-Top LCD Monitor include adjustable backlight and markers, HDMI auto color space and ratio detect, manual gamma adjustment, image flip and RGB check field / field detect. The unit has rugged metal front panel and 4 user-configurable buttons that provide fast access to various settings and functions.

An optical grade polycarbonate screen protection ensures that the Camera-Top LCD has a scratch-proof screen. The display unit includes a user-replaceable battery Adapter - AB (Anton/Bauer), 1/4"-20 mounting on all sides, 4-pin XLR power jack and a robust power switch.

What's Included With This Item

  • Marshall 7 inch High Brightness Field/Camera-Top LCD Monitor
  • V-PS12-5V-XLR Power Supply
  • CM (Canon) Battery Adapter
  • Operating Instructions
  • Marshall 1 Year Warranty

Key Features

  • High Brightness 800 x 480 LCD panel
  • DSLR Ratio Adjustment
  • HDMI Auto Color Space and Ratio detect
  • Manual Gamma Adjustment
  • Adjustable Backlight
  • Image Flip
  • 1/4"-20 mounts on all sides
  • Robust Power switch and rugged front panel
  • Variety of Markers, including user-adjustable
  • HDMI Loop-Through
  • False Color On/Off
  • Peaking Filter On/Off
  • RGB Check Field / Field Detect
  • 15:9, 16:9, 4:3, Pixel-to-Pixel modes
  • 4 user-configurable function buttons
  • Scratch Resistant Protective Screen
  • RGB gain and bias control

Technical Specs

Screen Size (Display Area) 7.0-inch Diagonal (152.4mm x 91.44mm)
Resolution (Pixels) 800 x 480
Pixel Pitch (mm) 0.1905mm(H) x 0.1905mm(V)
Brightness (in cd/m2) 800
Contrast Ratio 1000:1
Inputs Composite x 1, Component x 1, HDMI x 1
Loop-through outputs Composite x 1, Component x 1
Power Consumption 1 Amp (Max) @ 12VDC (12W Max)
Battery Adapter CM (Canon)
Dimensions (W x H x D) 7.03 x 5.67 x 2.17" (178.5 x 144.01 x 55.11mm)
Weight (Approx.) 1.9 lb (0.86 kg)
