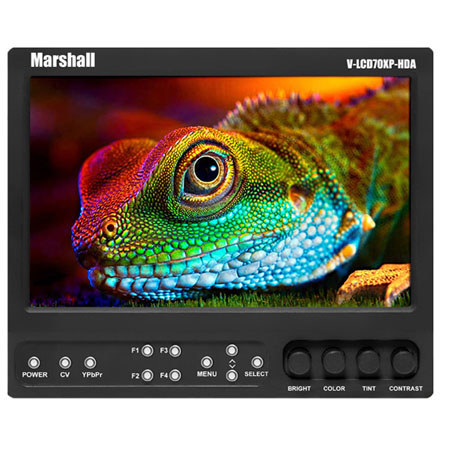

Marshall VLCD70XPHDACM 7in On Camera Monitor, Canon
Marshall

Marshall 7" On Camera Monitor with Composite and Component Inputs with Canon Battery Mount

SKU: MAR7XPHDAC MFR: VLCD70XPHDACM
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$599.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech SpecsAccessories
Its never too late...Click by 8! Same day shipping.

About this item

The V-LCD70XP is the latest addition to Marshall's successful and popular line of portable field / camera-top monitors. These new monitors introduce a new durable and lightweight design, weighing in at only 1.3 pounds! They also feature Marshall's completely digital TFT-MegaPixel high resolution LCD screen with 1.2 million pixels, 4-pin XLR power jack and optical grade polycarbonate screen protection. Analog signals are digitized using advanced 10-bit processing with 4x oversampling and adaptive 5-line comb filter.

This model comes in HDA (high definition Analog supporting Composite and YPbPr) module configuration. The V-LCD70XP also includes two features to assist you in getting the image you want: Focus Assist and Exposure Assist. It comes with Canon Battery Mount.

Key Features

  • High resolution 800 x 480 LCD panel
  • Manual Gamma Adjustment
  • Adjustable Backlight
  • Image Flip
  • 1/4"-20 mounts on all sides
  • More robust Power switch
  • Improved, more rugged front panel
  • Variety of Markers, including user-adjustable
  • False Color On/Off
  • Peaking Filter On/Off
  • RGB Check Field / Field Detect
  • 15:9, 16:9, 4:3, Pixel-to-Pixel modes
  • Scratch Resistant Protective Screen
  • 4 user-configurable function buttons
  • RGB gain and bias control

Technical Specs

Display (Viewing Area) 7.0" Diagonal (6.496" x 4.118") (165mm x 104.6mm)
Resolution (Pixels) 800 x 480
Viewing Angle L/R: 140°
U/D: 100°
Pixel Pitch (mm) 0.1905mm(H) x 0.1905mm(V)
Brightness 250
Contrast Ratio 400:1
Inputs HDA configuration: - Composite x 1, Component x1
Loop-through outputs HDA configuration: - Composite x 1, Component x1
Power Consumption Approx. 12W (12V @ 3.3A power supply included)
Dimensions 6.84" W x 5.67" H x 1.57" D ( 173mm x 143 mm x 40 mm)
Approx. Weight 1.3 lbs. (0.590 kg)
