About Marshall Electronics AR-VM1

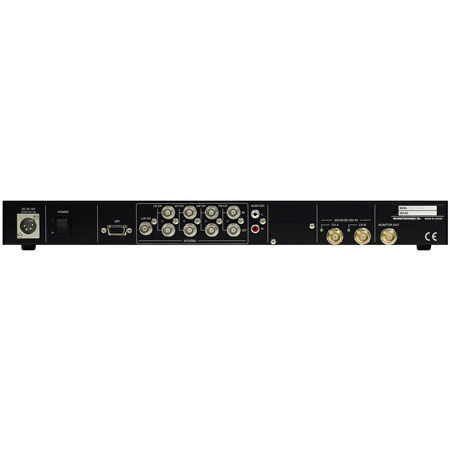

The Marshall AR-VM1 is a professional broadcasting audio monitor which has two 3G/HD/SD-SDI signal inputs along with four pairs of unbalanced AES/EBU input and outputs. This high-tech unit also offers headphone output, built-in speakers, front panel button illumination, and variable information on a high resolution LCD. This unit is the perfect solution for monitoring digital audio and video signals in sophisticated broadcast or production environments.

Marshall Electronics AR-VM1 Features

  • Audio de-embedded from selected SDI input up to 16 channels
  • 5.1ch to L/R downmix monitoring to support ISO/IEC 13818-7 and ARIB STD B-21
  • High resolution LCD for audio level, VU meter, status and input video display
  • 3G-SDI input and output capability
  • GPI for remote control
  • Smart and compact 1RU size

Marshall Electronics AR-VM1 Specifications

Input: Unbalanced AES/EBU
4 pairs
Input: 3G/HD/SD-SDI
2ch
Output: Unbalanced AES/EBU
4 pairs + 1 pair (speaker out)
Output: Analog RCA
L/R (speaker out)
Output: 3G/HD/SD-SDI
1ch (monitor out) monitor
Signal: Embedded audio
SMPTE 299M / 272M
Signal: 3G-SDI
SMPTE 424M
Signal: HD-SDI
SMPTE 292M
Signal: SD-SDI
SMPTE 259M
Format: HDTV
1080i60/59.94/50
1080p60/59.94/50/30/29.97/25/24/23.98
1080sF30/29.97/25/24/23.98
720p60/59.94/50/30/29.97/25/24/23.98
Format: SDTV
525i60/59.94
625i50
Control: GPI
D-Sub 15-pin
Display
320 dots x 96 lines LCD
Voltage
12VDC (10-18V) 4-pin male XLR connector
Power consumption
TBD
Operating temperature range
41 to 104 deg.F / 5 to 40 deg. C
Dimensions (W x H x D)
16.92 x 1.73 x 5.83in / 42.98 x 4.39 x 14.80cm
Weight
5lbs / 2.27kg
