Marshall Precision Analog Video to Digital Serial Digital Interface (SDI)
Marshall

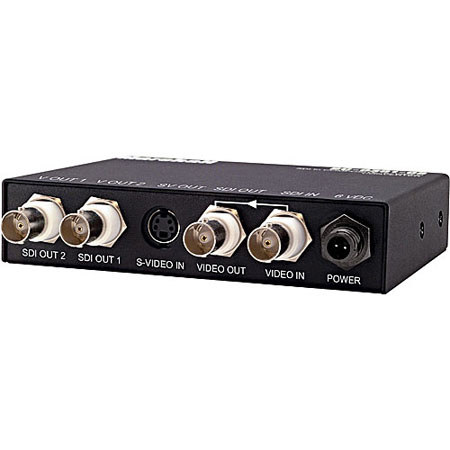

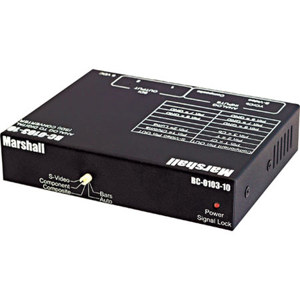

Marshall Precision Analog Video to Digital Serial Digital Interface (SDI) Converter

SKU: MARBC010310 MFR: BC010310
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$439.95
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech SpecsAccessories
Its never too late...Click by 8! Same day shipping.

About this item


• Composite Video or Y/C (S-Video) (NTSC/PAL) to Serial Digital Interface (SDI) conversion module. Featuring automatic cable compensation, 10-bit processing and a superior adaptive comb filter, the BD-0103-10 is an ideal solution for DTV applications and facility transitions to a digital environment.

Key Features

  • Converts Composite Video or Y/C to Digital Component (SDI)
  • NTSC or PAL operation with automatic detection
  • Illuminated power and input signal indicators
  • Adaptive filtering removes NTSC interlace artifacts
  • 2x over sampling for true color reproduction
  • 12 Bit analog to digital conversion
  • 10-bit qauntization of output signal

Technical Specs

Signal Input BNC for Composite Video 75 , 4 pin mini-din Y/C Video
Signal Output 2 BNC SDI 10 bit Component Digital (SMPTE-259/ITU-R BT601)
K factor <1%
Signal to Noise >63db
Cable Length Up to 1000ft (300m) AGC compensated (Belden 8281 or equivalent)
Power required 6V D.C. from external supply 3.0 Amp max
Sample Frequency 27Mhz
Differential gain/phase 0.4% / 0.6°
Dimensions 4.75"W x 3.75"D x 1.0"H
Weight 0.55 lbs
