Marshall Electronics Single 7" Full Featured 3RU Rack Mount Dual Input Audio and Video Monitor with Stereo Speakers

See all Marshall Electronics items
SKU: MAROR701A MFR: OR-701A
Marshall Electronics : Picture 1 thumbnail Marshall Electronics : Picture 2 thumbnail

List Price: $3,129.00

Free Shipping

See all shipping options

In Stock Online - Usually ships within 2-4 Days learn more

17% Off

Our Price

$2,589.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Marshall Electronics

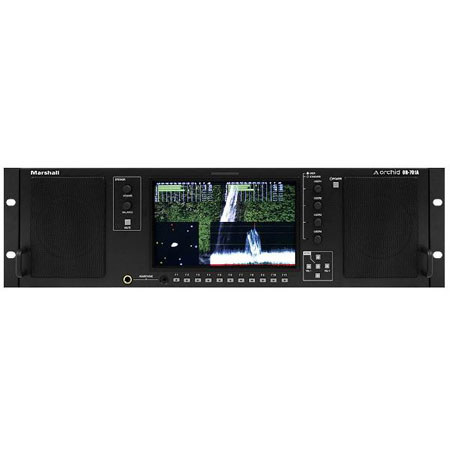

The Marshall OR-701A 7" Monitor takes the same multi-function waveform and Vectorscope features found in Marshall's OR-702 and adds full range audio speakers and a new vertical audio bar layout for real-time audio monitoring. Any two of the sixteen audio channels being de-embedded from the HDSDI source may be monitored through the built-in full range speakers.

The same audio is available from balanced XLR outputs on the rear panel, along with the two front panel headphone jacks (3.5mm and 1/4'). Each audio output has its own level control. The front panel speakers have Volume, Balance and Mute controls that operate separately from the rear panel line and front panel headphone outputs.

Marshall Electronics Features

  • Full Range Stereo Speakers
  • Real-Time Waveform Monitor
  • Real-Time Color Vectorscope
  • Sixteen 64-segment Tri-color Audio Meters
  • Tri-Color Tally Indicator
  • On-Screen Time Code
  • 7 assignable GPI Inputs
  • Adjustable Color Temperature
  • Optional Input Modules
  • Front Panel Headphone Jacks
  • Rear Balanced +4 Stereo Outputs
  • Adjustable Clipping Indicator
  • Precision Gamma Settings
  • Adjustable Color Temperature
  • Variety of Safety Markers
  • HDSDI / SDI Inputs and Outputs
  • Auto White Balance Calibration - Compatible with Konica Minolta CA-210 Color Analyzer

Marshall Electronics Specifications

Inputs
7 assignable GPI
Headphone Jacks
Yes
Audio Meters
Sixteen 64-segment Tri-color Audio Meters
Inputs and Outputs
HDSDI / SDI
