Marshall Electronics Marshall Full Featured LCD Single 8.4" Rack Mountable / Camera-Top, Portable Field Monitor
The Marshall OR-841-HDSDI 8.4" ORCHID rack mountable / portable field monitor has all the features that customers have asked for and more. The OR-841-HDSDI is 4RU and has 9 user-assignable function keys as well as a rotary menu system. The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in three different aspect ratios including Full Screen.
The built-in Vectorscope displays in full color and can also be displayed in three different ratios. The Vectorscope has adjustable gain from 1x to 5x. The OR-841-HDSDI will also de-embed and display up to 16 channels of audio and allow the user to monitor any two channels at once through the headphone jack or rear line output jack.

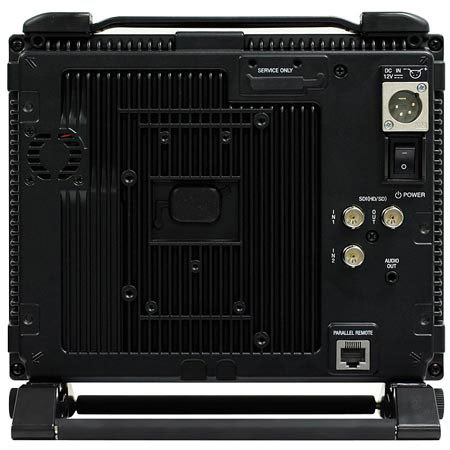

Also includes built-in front panel speaker and rear panel stereo input for audio monitoring. The 64-segment tri-color bar graph meters have user-adjustable reference levels. The OR-841-HDSDI comes standard with auto-sensing HDSDI inputs and re-clocked output. This unit can be used in a rack, on a desktop, in the field, or mounted to a camera.
|Viewing Angle||85° + 85° (H) / 50° + 60°(V)|
|Color||16.7M Colors (8-bit)|
|Active Area||6.7" x 5" (inches)|
|LCD Panel||TFT-LCD Active Matrix (IPS)|
|Resolution||1024 X 768|
|Audio||2 Stereo Jacks (3.5mm - Front / Rear) / 1 Screen|
|REMOTE||RJ-45 7 GPI (user preset functions)|
|Input||2 HD/SDI (Multi-rate / Auto Detect) / 1 Screen
4BNC (YPbPr) / CVBS / SY / SC
|Monitor||1 HD/SDI Loop-Through / 1 Screen|
|Power Supply||DC 12V 4-Pin XLR Connector/Battery Operable|
|Operating Temperature||32°F°F- 104°F|
|Operating Recommended||68°F- 86°F|
|Operating Humidity||30% - 85% (no condensation)|
|Operating Pressure||700hPa - 1060hPa|
|Storage Temperature||14°F- 104°F|
|Storage Humidity||0% - 90%|
|Storage Pressure||700hPa - 1060hPa|
|Dimension||8.6" x 8.2" x 1.7"|
|Weight||4 lbs. (4.6 lbs. with Power Adapter)|
