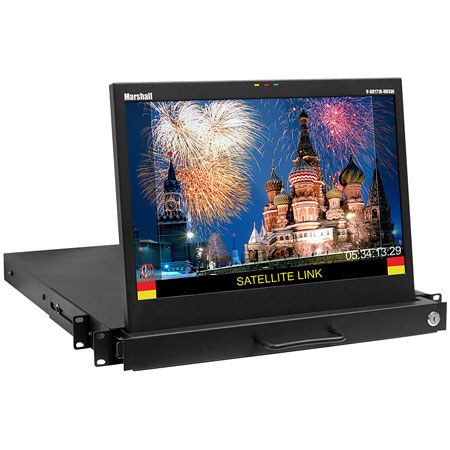

Marshall Electronics V-RD171X-IMD-HDSDI 17" 1920x1200 Pull-Out Monitor Drawer with HDSDI/SDI Input and In-Monitor Display - Redesigned

See all Marshall Electronics items

List Price: $3,199.00

Free Shipping

See all shipping options

In Stock Online - Usually ships within 2-4 Days learn more

17% Off

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Marshall Electronics V-RD171X-IMD-HDSDI

The V-RD171X-IMD-HDSDI fits into an EIA standard 19" rack and occupies only 1RU of space. This innovating monitor drawer is an "All-in-One" solution for post production houses, broadcasters, and mobile units. This fully-integrated approach eliminates the need for additional or separate Under Monitor Displays and allows UMD information and tallies to be displayed directly within a Marshall flat panel monitor, while saving precious rack space.

A variety of features are readily available including on-screen Video Time Code, three-color "Soft" Tallies, and Audio Presence Indicator. The new Marshall IMD display also includes the new RotoMenu feature which allows fast, direct, and easy menu navigation. Marshall IMD monitors integrate easily with existing Tally systems and controllers, including Image Video, NVISION, TSL, and MEI (Marshall Electronics) protocols.

Marshall Electronics V-RD171X-IMD-HDSDI Features

  • Durable, Single RU metal enclosure with Pull-Out drawer for the screen
  • Drawer includes lock and key for secure transport
  • No need for external Under Monitor Display - "all-in-one" In-Monitor Display solution without added depth
  • Supports the following protocols: Image Video / NVISION / TSL / MEI
  • High Resolution 1920 x 1200
  • New unique RotoMenu feature for fast, direct, and easy menu navigation
  • High resolution scaling / high quality deinterlacing
  • Three-color on-screen "soft" tally indicators (Red / Green / Amber)
  • Three LED color tally indicators (Red / Green / Amber)
  • On-Screen Audio Presence Indicator
  • On-Screen Video Time Code
  • RS-422 / 485 connection with loop-through for control communication / IMD functionality
  • Field upgradeable firmware capability via RS-422 / 485 port
  • Direct access for adjustments of brightness, contrast, and color
  • Multiple Frame Marker Overlays with Center Mark
  • Pixel-to-Pixel mode
  • Blue Gun for color adjustment
  • Adjustment Settings Memory

Marshall Electronics V-RD171X-IMD-HDSDI Specifications

Display (Viewing Area)
17" Diagonal (14.46" x 9.04") (367.2mm x 229.5mm)
Resolution (Pixels)
1920 x 1200
Viewing Angle
L/R: 140°
U/D: 120°
Pixel Pitch (mm)
0.191(H) x 0.191(V)
Brightness (in cd/m2)
Contrast Ratio
NTSC/PAL auto recognition
Loop-through output
Power Consumption
5.0A @ 12VDC
Dimensions (WxHxD)
19.12" x 1.75" x 22" / 48.56 x 4.44 x 55.88 cm
Approx. Weight
24 lbs / 10.89 kg
