Marshall 10.4" Active Matrix Color LCD Pan...
Marshall

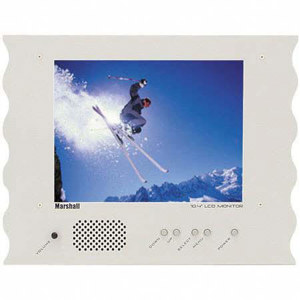

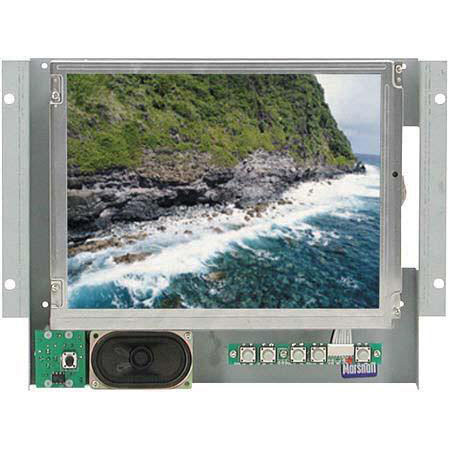

Marshall 10.4" Active Matrix Color LCD Panel with Front White Panel and Composite Video, S-Video Inputs

SKU: MARVLCD104F MFR: V-LCD10.4-FP
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$689.94
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The Marshall V-LCD10.4FP is a custom application LCD panel that is intended for in-wall installation. The monitor displays 640 horizontal by 480 vertical pixels for a high-resolution output from either RCA composite or S-Video sources.

Key Features

  • This LCD panel is both NTSC and PAL compatible and switchable from the menu system
  • The V-LCD104FP integrates a single speaker for audio output
  • This model comes with a face plate for a finished look
  • The monitor comes without a necessary power supply. The recommended V-PS12-3.3 is sold separately

Technical Specs

Display (Viewing Area) 10.4" (8.43" H ® 6.31" V)
Resolution (Pixels) 640H ® 480V
Dot Pitch 0.105mm ® 0.161mm
Brightness 200 cd/m^2
System NTSC/PAL auto detection
Inputs Composite Video , S-Video
Contrast Ratio 150:1
Dimensions 11.50"W ® 8.75"H ® 1.25"D
Power Consumption 12 VDC, 1.0 Amps
