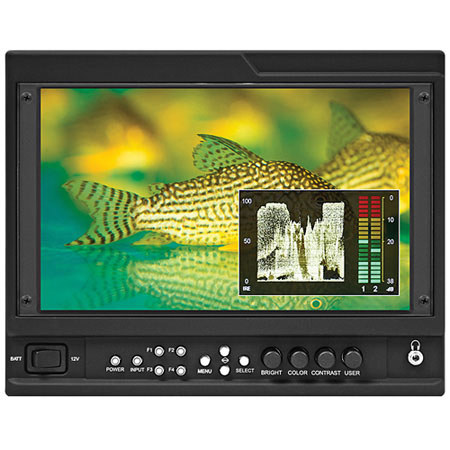

Marshall Electronics V-LCD90MD-3G 9" On-Camera LCD Monitor with HDMI and 3G-SDI Input Module, 1000:1 Contrast Ratio, 600 Nit Brightness, 1280x768 Resolution

SKU: MARVLCD90MD3 MFR: V-LCD90MD-3G
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,899.00 List Price

Our Price

$1,599.00 $63 per week
Free Expedited Shipping
Qty:
Add to Wishlist In Stock

About the Marshall Electronics V-LCD90MD

The Marshall V-LCD90MD-3G 9" On-Camera Monitor with HDMI and 3G-SDI Input Module is a top-quality camera monitor with superior internal components and an advanced set of focus, exposure and sound-assist tools. The display is a high-resolution, high-contrast display and is polycarbonate-coated for scratch resistant protection. It has LED backlit for additional brightness and it is equipped with IPS technology allowing an enhanced viewing angle from farther and farther away. The operating system is icon-driven.

Connections consist of native mini-HDMI input and output and, via a pre-installed input module, dual SDI outputs. The HDMI input gives you 8 channels of de-embedded audio to pick up and monitor. You can monitor the audio on-screen on a dual-bar Waveform display or/and with headphones via the monitor's headphone output. With headphones, you can monitor any pair from the available channels.

The SDI input gives you 16 channels of de-embedded stereo audio and the HDMI input 8 channels. You can monitor audio on-screen on a dual-bar Waveform display and also with headphones via a stereo headphone output. The front panel has 14 buttons four of which are user configurable with 32 possible uses. For mounting, a 1/4"-20 screw-holes is available on every side of the monitor.

For mounting, a 1/4"-20 screw-holes are available on every side of the monitor. And for power, a power supply comes included and additionally any of a very long list of batteries can optionally be attached.

Marshall Electronics V-LCD90MD Includes

  • Marshall V-LCD90MD-3G 9" On-Camera Monitor
  • Power Supply
  • Marshall Warranty

Marshall Electronics V-LCD90MD Features

  • DSLR Ratio Adjustment: Lets you scale video that does not completely fill the monitor's screen when connected by HDMI in "Record" mode on certain Canon DSLRs. You can scale DSLR video output, fill the screen and eliminate black pillar bars with a variety of options to choose select, from Normal
  • Waveform and Audio: The monitor incorporates both a Waveform display and Stereo Audio bars. These may be displayed separately or together in any one of the four corners of the monitor. The Stereo Audio is de-embedded from either the input
  • Zebra Clip Guide: The Zebra function visually filters parts of images under a Lower Threshold or over an Upper Threshold. Data on either side of the filters can be displayed with a custom color. Zebra can also be inverted to filter the area between the Upper and Lower Threshold
  • Input Crop with Auto Scaling: The Input Crop function selects the area of active video that you would like shown on the image display. Select the desired Input by accessing the Adjust option on the screen
  • Custom Pixel-to-Pixel Panning: Lets you select a custom Pixel-to-Pixel zone and use the COLOR knob to move your selection LEFT and RIGHT and the CONTRAST knob to move UP or DOWN. The SELECT button locks in your selection
  • False Color: Helps set camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values
  • Peaking: Helps get the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. When the camera operator adjust ("racks") the focus control / camera lens, different parts of the image will have these colored highlights
  • Adjustable Screen Markers: A variety of screen markers in 4:3, 16:9 and full screen modes allow accurate monitoring of the different aspect ratios used in broadcast environments. User Markers allow for custom aspect ratio, cropping framing, now with a choice of four colors and variable width lines
  • 6 Custom Configuration Presets: Six User Setting Presets allow the user to save six system configuration files for later recall when needed. These configuration files will save 38 different parameters that can be adjusted by the user
  • User-Definable Function Buttons: Four user-definable function buttons on the front-panel allow quick access to numerous settings and features including focus-assist, false color filter, aspect ratio, screen markers, monochrome mode, color temperature, delay mode and more
  • Stereo Headphone Output: You can monitor 8 channels of audio from the HDMI input and 16 channels from the SDI input

Marshall Electronics V-LCD90MD Specifications

Display (Viewing Area) 193.902 x 116.352 mm (9" Diagonal)
Aspect Ratio 16:9
Pixel Pitch 0.15 x 0.15 mm
Resolution (Pixels) 1280 x 768
Viewing Angle L+R: 176deg. / U+D: 176deg.
Display Technology High Brightness IPS White LED Backlight Panel
Brightness (in cd/m2) 600
Contrast Ratio 1000:1
Response Time 22 ms
Inputs HDMI (HDCP Compliant)
Outputs HDMI (HDCP Compliant) (Pass-Through)
Compatible Modules MD-3GE (3G/HD/SDI Input with Loop-Through)
MDO-3G (3G/HD/SDI Output Converted from HDMI Input). HDCP protected content will not pass-through)
Power Consumption 14.4 Watts (1.2A @ 12V)
Input Voltage Range 7-20 VDC
Mounting Points 4 x 1/4"-20
Battery Compatibility JVC, Sony M, Sony L, Panasonic, Canon, Sony B, Canon LP-E6, Canon ENEL3, Canon BP-511, IDX V-mount, Anton Bauer
Dimensions (W x H x D) 9.3 x 7.27 x 1.41" / 23.6 x 18.46 x 3.58 cm
Weight 2.3 lbs / 1.04 kg
