Marshall Electronics V-LCD90MD 9" On-Camera LCD Monitor with HDMI and Dual SDI Output Module, 1000:1 Contrast Ratio, 600 Nit Brightness, 1280x768 Resolution

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

List Price: $1,939.00

Availability: In Stock Online In Stock Online - Usually ships within 2-4 Days

Free Shipping

See all shipping options

Ways To Save

More Buying Options

Product Highlights

  • DSLR Ratio Adjustment
  • Waveform and Audio Clip Guide
  • Zebra Clip Guide
  • Input Crop with Auto Scaling
  • Custom Pixel-to-Pixel Panning
  • False Color for flawless shot exposure
  • Peaking displays highlight where sharp edges appear
  • Adjustable Screen Markers

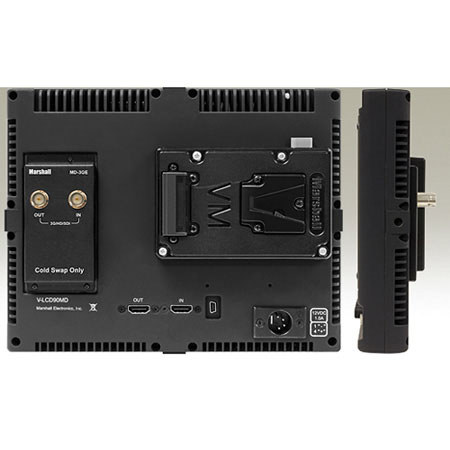

Marshall Electronics V-LCD90MD: Picture 1 regular $1,609.00

About Marshall Electronics V-LCD90MD

The Marshall V-LCD90MD 9" On-Camera Monitor with HDMI and Dual SDI Output Module is a top-quality camera monitor with superior internal components and an advanced set of focus, exposure and sound-assist tools. The display is a high-resolution, high-contrast display and is polycarbonate-coated for scratch resistant protection. It has LED backlit for additional brightness and it is equipped with IPS technology allowing an enhanced viewing angle from farther and farther away. The operating system is icon-driven.

Connections consist of native mini-HDMI input and output and, via a pre-installed input module, dual SDI outputs. The HDMI input gives you 8 channels of de-embedded audio to pick up and monitor. You can monitor the audio on-screen on a dual-bar Waveform display or/and with headphones via the monitor's headphone output. With headphones, you can monitor any pair from the available channels.

For mounting, a 1/4"-20 screw-holes are available on every side of the monitor. And for power, a power supply comes included and additionally any of a very long list of batteries can optionally be attached.

Marshall Electronics V-LCD90MD Features

  • DSLR Ratio Adjustment: You can scale DSLR video output, fill the screen and eliminate black pillar bars with a variety of options to choose select, from Normal, to 3:2, 16:9 and Full Screen. DSLR Ratio Adjustment is programmable to one of the four user-configurable buttons on the front panel
  • Waveform and Audio Clip Guide: The monitor incorporates both a Waveform display and Stereo Audio bars. These may be displayed separately or together in any one of the four corners of the monitor. The Stereo Audio is de-embedded from either the input
  • Zebra Clip Guide: The Zebra function visually filters parts of images under a Lower Threshold or over an Upper Threshold. Data on either side of the filters can be displayed with a custom color. Zebra can also be inverted to filter the area between the Upper and Lower Threshold
  • Input Crop with Auto Scaling: The Input Crop function selects the area of active video that you would like shown on the image display. Select the desired Input by accessing the Adjust option on the screen
  • Custom Pixel-to-Pixel Panning: Lets you select a custom Pixel-to-Pixel zone and use the COLOR knob to move your selection LEFT and RIGHT and the CONTRAST knob to move UP or DOWN. The SELECT button locks in your selection
  • False Color: Helps set camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values
  • Peaking: When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. When the camera operator adjusts ("racks") the focus control / camera lens, different parts of the image will have these colored highlights
  • Adjustable Screen Markers: A variety of screen markers in 4:3, 16:9 and full screen modes allow accurate monitoring of the different aspect ratios used in broadcast environments. User Markers allow for custom aspect ratio, cropping framing, now with a choice of four colors and variable width lines
  • 6 Custom Configuration Presets: Six User Setting Presets allow the user to save six system configuration files for later recall when needed. These configuration files will save 38 different parameters that can be adjusted by the user
  • User-Definable Function Buttons: Four user-definable function buttons on the front-panel allow quick access to numerous settings and features including focus-assist, false color filter, aspect ratio, screen markers, monochrome mode, color temperature, delay mode and more
  • Stereo Headphone Output: You can monitor 8 channels of audio, in any two pairs, from the HDMI input

Marshall Electronics V-LCD90MD Specifications

Display (Viewing Area)
193.902 x 116.352 mm (9" Diagonal)
Aspect Ratio
Pixel Pitch
0.15 x 0.15 mm
Resolution (Pixels)
1280 x 768
Viewing Angle
L+R: 176deg. / U+D: 176deg.
Display Technology
High Brightness IPS White LED Backlight Panel
Brightness (in cd/m2)
Contrast Ratio
Response Time
22 ms
HDMI (HDCP Compliant)
HDMI (HDCP Compliant) (Pass-Through)
Compatible Modules
MD-3GE (3G/HD/SDI Input with Loop-Through)
MDO-3G (3G/HD/SDI Output Converted from HDMI Input). HDCP protected content will not pass-through)
Power Consumption
14.4 Watts (1.2A @ 12V)
Input Voltage Range
7-20 VDC
Mounting Points
4 x 1/4"-20
Battery Compatibility
JVC, Sony M, Sony L, Panasonic, Canon, Sony B, Canon LP-E6, Canon ENEL3, Canon BP-511, IDX V-mount, Anton Bauer
Dimensions (W x H x D)
9.3 x 7.27 x 1.41" / 23.6 x 18.46 x 3.58 cm
2.3 lbs / 1.04 kg
Mfr #

Marshall Electronics V-LCD90MD Reviews Powered by TurnTo®

Reviewed by 1 customers




this is a great monitor with awesome color and brightness.
