Marshall Electronics V-MD171XN-DT 17" Desktop Monitor with Modular Input Slots, 1920x1200 Resolution, False-Color Filter

See all Marshall Electronics items
Marshall Electronics V-MD171XN-DT: Picture 1 thumbnail Marshall Electronics V-MD171XN-DT: Picture 2 thumbnail
Free Shipping

See all shipping options

In Stock Online Usually ships within 2-4 Days learn more

Made in USA

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Marshall Electronics V-MD171XN-DT

The Marshall V-MD171XN-DT 17" Desktop Monitor with Modular Input Slots is a networkable HD monitor that can accept a variety of optional input modules including 3G/HD-SDI, 2-channel HD-SDI, 2-channel HDMI and DVI-I. An optional fiber-optic input/output module is also available and Marshall Electronics plans to release more modules in the future. As a result of this modular design, the monitor can be updated to keep up with changing needs or new technology.

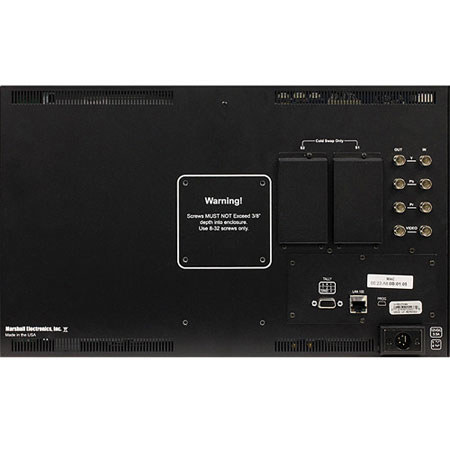

On the rear panel, underneath the two optional input slots, is a LAN 100 port with a built in web server. A LAN configured with multiple V-MD-series monitors can be controlled remotely via a Firefox web browser, even on a wireless device.

Other important features include composite and component inputs and loop-through outputs, a false color filter, user-definable function buttons and much more.

Marshall Electronics V-MD171XN-DT Features

  • Includes 2 slots for optional 3G-SDI, fiber and other input/output modules, swappable in the field
  • Networkable via LAN 100 port with built-in web server
  • Functions include False Color, Markers, RGB Gain/Bias Adjust, Pixel-to-Pixel, Blue Gun and Hard Tally
  • Maintains picture quality over long fiber cable rubs when an optional fiber-optic module is employed
  • User-definable buttons allow a more streamlined workflow

Marshall Electronics V-MD171XN-DT Specifications

Display Size
17" (43.18 cm)
Pixel Pitch
0.191x0.191 mm
Aspect Ratio
400 cd/m2
Standard Inputs
Component x1 on 3 BNC connectors
Composite x1 on BNC connector
Standard Outputs
Component loop-through x1 on 3 BNC connectors
Composite loop-through x1 on BNC connector
Optional Input Slots
Power Consumption
3.5 amp@ 12 VDC (32 W max)
18.9x10.45x1.4" (48x26.54x3.56cm)
5.1lbs (2.31kg)
