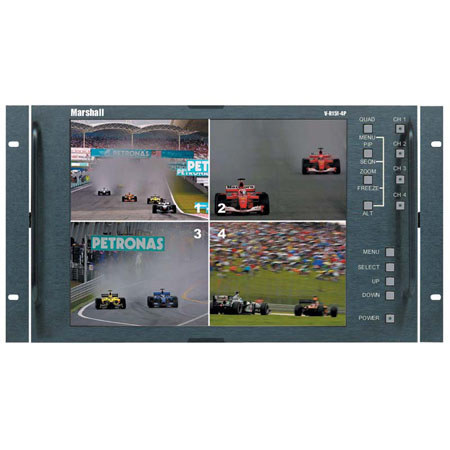

Marshall 15.1" Rack Mountable NTSC System Video Monitor with XGA, Built-in Quad Splitter & Sequential Switcher
What's Included With This Item:
- Power Supply
- Users Manual
Ways to Save
• The V-R151P-4 is a 15" LCD rack mounted unit 6U high that includes Quad Splitterand Sequential Switcher. This panel has 1024 x 768 pixels producing a true high resolution image.
The Quad Splitter allows all of the four channels to appear onthe monitor simultaneously either using full screen or picture-in-picture mode.
For added flexibility, this unit can accommodate composite video, S-Video or XGA for computer monitoring (S-Video and XGA inputs are only available in full screen mode). Unit includes power supply and owners manual.
|Display (Viewing Area)||15.1" (11.69" × 9.12")|
|Resolution (Pixels)||1024 H × 768 V|
|Dot Pitch||0.297mm × 0.302mm|
|Brightness (in cd/m²)||250 cd/m²|
|System||NTSC - V-R151P-4
(ALSO AVAILABLE IN PAL SYSTEM)
|Inputs per panel (total)||1 S-Video, 4 Composite, 1 XGA|
|Dimensions||19.12"W × 10.5"H × 2.25"D|
|Approx. Weight||24 lbs|
|Power Consumption||12 VDC, 2.0 Amps|
