Marshall Electronics Triple 4" Rack Mounted LCD Panel with 2 Composite Video Inputs Per Screen.

See all Marshall Electronics items
SKU: MARVR43P MFR: V-R43P

List Price: $1,309.00

Free Shipping

See all shipping options

Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. learn more

24% Off

Our Price

$999.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Marshall Electronics

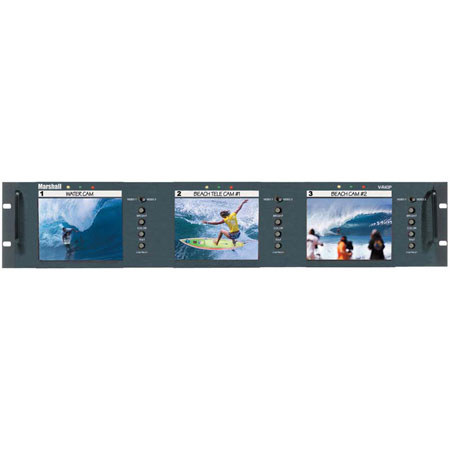

• The V-R43P is a rack mountable unit that offers three 4" high-resolution active matrix LCD panels. Each of the three 480 x 234 pixel screens has its own set of controls for color, tint, contrast, and brightness. Each panel has an on / off switch, two composite video inputs with active loop through feature, a self-powered 3 color tally system, and auto-recognition of NTSC or PAL video formats.

This unit is only 2U high, can be tilted up to 100 degrees while rack mounted, and is the smallest video monitoring system of its kind. All V-R Series models are constructed of steel and aluminum, and include power supply and owners manual.

Marshall Electronics Features

  • High Resolution, 480 x 234 pixels, 112,320 total pixels
  • Ultra-compact design fits in EIA standard rack 2U high
  • Ultra bright panels with 300 candle luminance each
  • Each screen has 2 Composite Video inputs with active loop through feature
  • Automatic NTSC/PAL Video Signal Detection
  • Unique 100 degree tilt adjustment while mounted in rack
  • Three color, self-powered tally system provided for each panel
  • Dry Erase Marker for EZ Identifying of screens is included

Marshall Electronics Specifications

Display (Viewing Area)
4" (3.23" × 2.43")
Resolution (Pixels)
480 H × 234 V
Dot Pitch
0.171mm × 0.264mm
Brightness (in cd/m²)
300 cd/m²
System
NTSC/PAL auto recognition
Inputs per panel (total)
2 (6) Composite
Dimensions
19.125"W × 3.43"H × 1.9"D
Approx. Weight
3.5 lbs
Power Consumption
12VDC, 2.0 Amps
