Meade

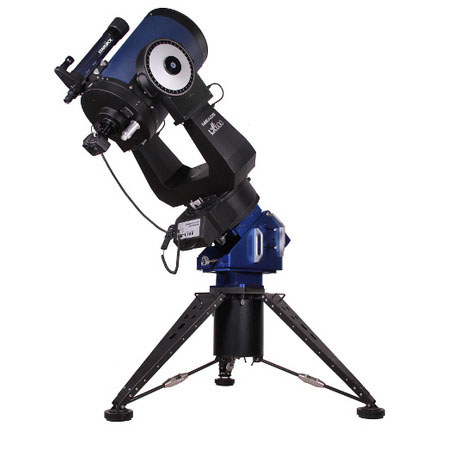

Meade 16" LX600-ACF f/8 Advanced Coma-Free Optical System with StarLock, MAX Wedge & MAX Tripod

SKU: MD16LX600AX MFR: 1608-70-02
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$22,999.00
Free Shipping
Qty:
Add to Wishlist

About the Meade LX600-ACF f/8

The Meade 16" LX600-ACF f/8 Advanced Coma-Free Optical System with StarLock, MAX Wedge & MAX Tripod is a simple to operate, portable package that makes taking great astrophotos as easy as focusing your camera and opening the shutter. The collection of features and technology integrated into the LX600 is unavailable from any other manufacturer and cannot be duplicated by just attaching a set of add-ons to another scope.

The LX600 integrates a unique star tracking and object finding system into the telescope mount. This integration allows the telescope to center your target perfectly in the field of view. Once centered, the star tracking system communicates directly with the motor drives to automatically assure your scope stays locked onto its target with arcsecond precision. The automated optical tracking system delivers long-exposure guiding with pinpoint stars on astroimages despite misalignments, atmospheric refraction, periodic or other mechanical errors. This level of precision is unobtainable with systems using high precision encoders, software pointing models, large gears or PEC training - and all without the need of an external computer.

Meade f/8 Advanced Coma-Free Optical System has completely redesigned the OTAs with a new mirror mounting and focusing system to achieve zero image-shift and a two-speed microfocuser. The scope features faster f/8 ACF optics giving you pinpoint stars all the way across the field of view. Internal Crayford-style 7:1 Focuser completely redesigned mirror mounting system achieves zero-image shift, eliminating the need for a mirror lock and integrates a two-speed microfocuser for quick and easy adjustments.

In Alt/Az mode, the LX600 also makes for the best visual and short exposure experience possible. The LX600 performs LightSwitch fully-automated self alignment. StarLock will put every target dead center in the eyepiece and track with arcsecond accuracy so you can concentrate on the beautiful, wide fields of pinpoint stars created by the superb f/8 ACF optical system. Autostar II Controller puts over 145,000 objects at your fingertips with the fastest GoTo performance available (8 degrees per second), or you can control the system from an external computer.

Meade LX600-ACF f/8 Includes

  • Meade 16" LX600-ACF with StarLock
  • Autostar II Controller
  • Filtered Cooling Fan
  • 8X50 Finderscope
  • 26mm Series 4000 Super Plossl Eyepiece
  • 2" Enhanced Star Diagonal
  • Internal Crayford 7:1 Focuser
  • 12V Universal Power Supply
  • Professional Grade Fork Mount
  • MAX Tripod
  • MAX Wedge
  • Meade Warranty

Meade LX600-ACF f/8 Features

  • Filtered Cooling Fan: To keep your telescope in thermal equilibrium the optical tube is equipped with a cooling fan as well as a filtered exhaust vent
  • Professional-Grade Fork Mount With 11" Gears: The massive 16" LX600 fork system, cast in one continuous piece from one declination housing to the other, includes a total of four 80 mm roller bearings in declination (two in each housing) and two roller bearings in right ascension
  • MAX Wedge: The MAX Wedge was designed using advanced CAD analysis to assure both ease of adjustment and rock solid stability using modern light weight alloys
  • MAX Tripod: The MAX Tripod can be transported or permanently installed. It provides a wide stance to assure that it can safely carry the 16" LX600's payload in all orientations, but still collapses down to a size that is easy to handle. It will even fit in a single vehicle with the rest of your gear

Meade LX600-ACF f/8 Specifications

Aperture 16" / 40.64cm
Focal Ratio f/8
Focal Length 3251mm
Hand Controller AutoStar II
Objects in Database 145,000
GPS Receiver No
UHTC Yes
