Meade #505 Connector Cable Set for the LX-90 & LXD-55, ETX-90, ETX-105, and ETX-125 Series Telescopes

Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Add to Wishlist

About the Meade #505

The #505 Connector Cable Set provides access to three Autostar operations:
Telescope Control:
• Use a personal computer (PC) to directly control a Meade Autostar-compatible telescope through the use of an astronomical software program with telescope control capabilities such as Meade Epoch 2000sk Sky Software.

Download from a PC:
• Download a new version of the Autostar software or object information (e.g., new satellite orbital parameters) from the Meade web site ( through a PC to Autostar.

Download and Clone from Autostar:
• Transfer user defined object information or new Autostar software from one Autostar Computer Controller to another.

The 3-foot cable connects two Autostars, while the 6-foot cable connects an Autostar and a PC using the interface adapter.

A powerful feature of Autostar is that it serves as an interface between an astronomical software program, such as Meade Epoch 2000sk Sky Software, and a Meade digital telescope. NOTE: The software program must be compatible with the LX200-series telescope to be compatible with Autostar.

NOTE: The two versions of the Autostar Computer Controller are not compatible with each other (i.e., cloning from a #497 to a #495 will not work).

Downloading information is a two step process: First, information is downloaded from a web site to a PC; second, information is downloaded from the PC to Autostar.

Meade #505 Includes

  • 3-foot, 4-pin to 4-pin cable
  • 6-foot, 4-pin to 6-pin cable

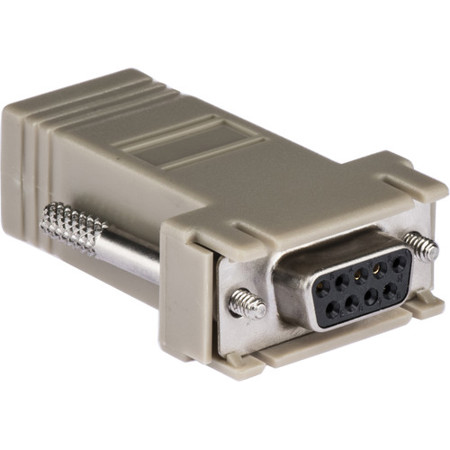

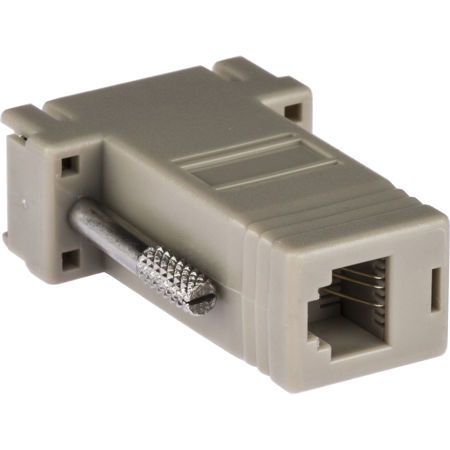

  • 6-pin to RS-232 serial interface adapter -
