Manhattan HD071A2 7.1" HD Professional LCD Monitor with Panasonic Plate
Manhattan LCD

Manhattan HD071A2 7.1" HD Professional LCD Monitor with Panasonic Plate, 1024x600 WXGA Resolution, 400 Nits Brightness, 500:1 Contrast Ratio

SKU: MHD071A2P MFR: HD071A2-P
What's Included
What's Included With This Item:
  • Manhattan HD071A2-P 7.1" HD Professional LCD Monitor
  • Panasonic Plate
  • Manhattan 1 Year Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$486.50
Qty:

Add to Wishlist
OverviewTech SpecsAccessories
Its never too late...Click by 8! Same day shipping.

About the Manhattan LCD HD071A2

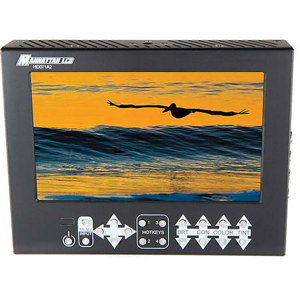

The Manhattan HD071A2-P 7.1" HD Professional LCD Monitor with Panasonic Plate is designed for field monitoring. This wide screen LCD monitor is full HD compatible with multiple inputs. This monitor has the more advanced Pixelworks chipset it has features such as an Advanced Color Control, True Anamorphic 16:9 aspect ratio, 1:1 Pixel Mapping & is also firmware upgradeable. The panel is 1024 X 600 resolution, matte finish great for outdoors. Sunhood and battery options available.

Manhattan LCD HD071A2 Includes

  • Manhattan HD071A2-P 7.1" HD Professional LCD Monitor
  • Panasonic Plate
  • Manhattan 1 Year Warranty

Manhattan LCD HD071A2 Specifications

LCD Size 7.1"
Contrast ratio 500:1
Brightness 400 Nits
Response Time 25 ms, full on/full off
Viewing Angle (L/R/U/D) 140 / 110 degrees
Controls Brightness - Contrast - Saturation - Red Green Blue Channel Levels
Fit All - 1:1 (Pixel Mapping) - Normal - Zoom - Anamorphic (16:9) - Wide - Auto
Picture in Picture - On Screen Display - Multi Language - Freeze Frame
Infrared Remote Control - Full Access to OSD

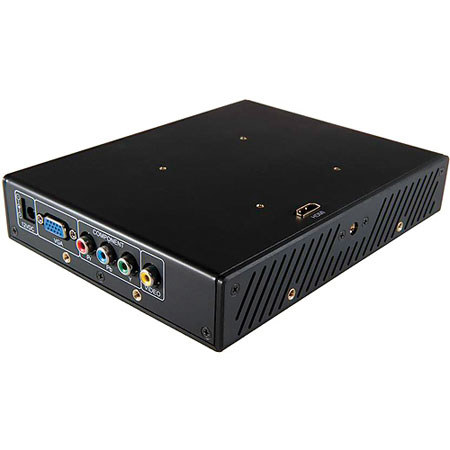

Inputs HDMI (HDCP) - 2 Inputs, Supports 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
VGA - 1 Input, Supports 640x480/800x600/1024x768/1280x720/1280x768/1280x1024/
1366x768/1920x1080
Component: 1 Input, Supports 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
CVBS (Composite): 1 Input, Support 480i
Power 12v DC, <20 Watts
Tekkeon MP3450 Rechargeable Battery 5 Hour Run Time (Optional)
Power Connector 5.5mm X 2.1mm Barrel Connector
Battery Plate for Panasonic 2 Hour Run Time
Dimensions (W x H x D) 7.9" x 5.5" x 1.6" (20 x 14 x 4 cm)
Weight 1.5 lbs (0.7 kg)
