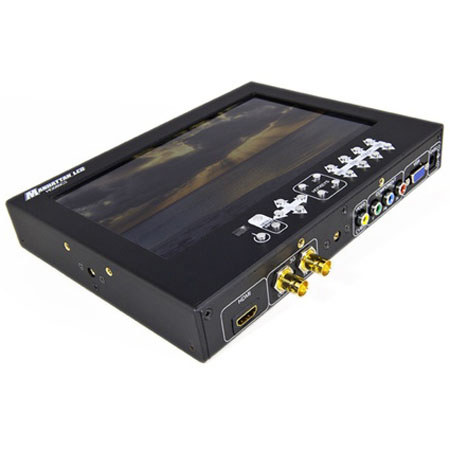

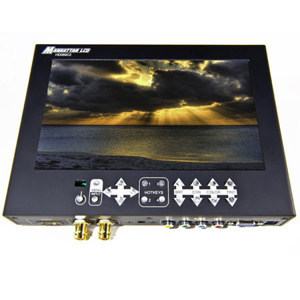

The Manhattan LCD 8.9" HD Pro LCD Monitor with 3G HDSDI (Panasonic Battery Plate) delivers clear images at a resolution of up to 1280x768 and features a WXGA panel, a contrast ratio of 500:1, a brightness rating of 400 nits and NTSC/PAL system support. A viewing angle of 110deg. / 100deg. (LR/UD) allows you to view the images clearly even from room corners or when the display is mounted at a height. Featured 3G HDSDI with loop through function duplicates an input signal and transmits via an additional output.
With a response time of 8 ms, the 8.9" HD Professional LCD monitor displays clear images with less blurring effect. Featured False Color Filter function allows you to accurately set the camera exposure levels. The Blue Gun feature switches off red and green scan guns to produce an image made only from a blue scan gun.
The Monochrome Mode allows you to view grayscale images by disabling all colors. With screen and aspect markers, end of a frame can be viewed with the help of superimposed graphical borders. The marker settings can be used to control center marker, full screen markers, 16:9 markers and 4:3 markers.
Using the HDMI color space function, the 8.9" HD Professional LCD monitor can auto detect or manually choose the color space (Auto, 709, 607, RGB) of incoming HDMI video signal. Featured Underscan mode displays the full video frame, revealing the content on the edges. In addition, the Overscan mode displays the essential portions of a scene.
Equipped with the PIP (Picture-In-Picture) function, the 8.9" HD Professional LCD Monitor can display multiple images simultaneously. Featured PBP (Picture-By-Picture) function splits the screen into 2 equal pictures. The left side picture is the main picture, while the right one is the sub-picture.
With H/V control, it is possible to conveniently shift picture small distances. The Freeze Frame function displays a still image created by running a series of identical frames or by stopping a reel or a videotape at one required frame. Featuring a focus assist function, the 8.9" HD Professional LCD Monitor allows precise adjustment of the camera (attached to the monitor) focus.
The 8.9" HD Professional LCD monitor comes with 12 user presets for easy menu navigation. An OSD (on-screen-display) allows adjustment of brightness, contrast, saturation, tint, sharpness gamma, RGB color temperature and language settings via a simple on-screen menu. In addition, the monitor supports RED Camera mode, Canon 7D mode, HDSLR Record and HDSLR Playback.
With 0.125" (0.31 cm) ABS matte finish, the 8.9" HD Professional LCD Monitor features 4 mounting locations (1/4-20 thread, top/bottom, left/right) to connect to the camera gear. Featuring HDMI Input (HDCP compliant), HD Component input, SD Composite input and analog VGA input, the LCD monitor offers all-round connectivity. In addition, the LCD monitor comes with an infrared remote control.
