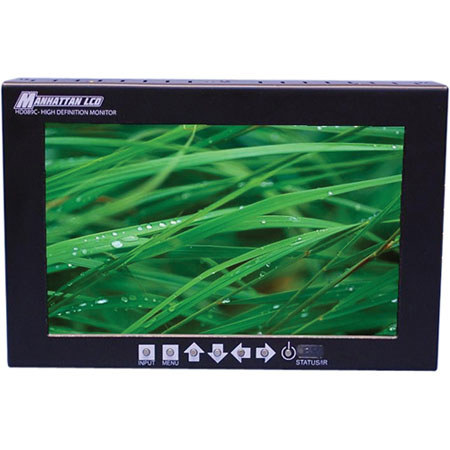

Manhattan LCD HD089C 8.9" HD Professional LCD Monitor, 1280x768 Native Resolution, 300 cd/m2 Brightness, 500:1 Contrast Ratio, Matte Black

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

Our Price

$499.00 $20 per week
Free Expedited Shipping
Add to Wishlist In Stock

About the Manhattan LCD HD089C

The HD089C 8.9" HD Pro LCD Monitor from Manhattan LCD is designed for advanced field monitoring at a reasonable price. The screen offers high-quality display output in a portable package that weighs less than 2 lb (0.9 kg). With a native resolution of 1280x768, the LCD displays video formats from SD to HD, 480i to 1080p - including PAL and NTSC as well as most imaginable HD and computer formats via HDMI, component and VGA inputs. (The display also has a composite video input for 480i.)

The field monitor allows you to adjust virtually all display parameters such as brightness, contrast, saturation, tint, gamma, etc. Advanced display features include false color, focus assist, under/over scan, monochrome, 1:1 pixel mapping and picture-in-picture. The LCD offers 12 user presets.

The HD089C includes a special aspect ratio for the Canon 50D, 60D, 5D, T2I and T3I cameras. These popular cameras are difficult to use with standard field monitors, as the cameras' preview and record modes require a custom aspect ratio to display the picture without distortion. The HD089C's "DSLR Rec" is an automatic aspect ratio that corrects Canon DSLR record and preview modes, providing a proper picture.

The monitor's False Color feature transforms video brightness to a colored scale that helps the operator in setting a camera's exposure. As the camera's exposure is adjusted, the picture changes colors based on brightness levels. Once this setting is locked in, you will know you are getting suitable exposure without expensive equipment.

Peaking (focus assist) shows you the position of the camera's focal plane. As you rack the focus back and forth you can see objects come in and out of focus by way of a bright white outline. Other convenient features include upgradeable firmware, NTSC/PAL auto-detect and two 1/4"-20 mounting threads - one on top, one on bottom, for increased versatility.

Manhattan LCD HD089C Includes

  • Manhattan LCD HD089C 8.9in HD Professional LCD Monitor
  • 110V/240V AC Power Adapter
  • IR Remote Control
  • User Manual CD
  • Manhattan LCD 1 Year Warranty

Summary of Customer Reviews

Customers most agreed on the following attributes:
Reviewer Profile:
Quality oriented (1)

Manhattan LCD HD089C Features

  • The monitor's LCD controller has a firmware-upgradable processor chipset from industry leader Pixelworks
  • The monitor is completely digital, from the TFT screen to the driver board. High-speed triple ADC supports NTSC/PAL/SECAM, including all substandard. There's an adaptive five-line comb filter and it processes at 1 billion colors
  • Advanced picture and image controls (refer to Specifications)
  • 1:1 pixel mapping for more precise focus, plus 16:9, 4:3, Fill to Aspect and Fill All
  • Over/under-scan, aspect guides, screen markers
  • Supports 480i/480p/576i/576p/720p/1080i/1080p at 24/25/30/50/60 Hz
  • HDMI colorspace supports YCbCr 4:4:4, YCbCr 4:2:2 and RGB 4:4:4 at 8/10/12-bit

Manhattan LCD HD089C Specifications

LCD Size 8.9 in
Resolution 1280 x 768 (WXGA)
Contrast Ratio 500:1
Brightness 300 cd/m2
Response Time 25 ms (Full On/Off)
Viewing Angle 140deg. (Left/Right) x 110deg. (Up/Down)
Inputs: HDMI x1 Supports 1080p, 1080i, 720p, 576p, 576i, 480p, 480i; HDCP
Inputs: VGA x1 Supports 640 x 480, 800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 1024, 1366 x 768, 1920 x 1080
Inputs: Component x1 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Inputs: Composite x1 Supports 576i, 480i
Picture Controls Brightness, Contrast, Saturation, Tint, Sharpness, Gamma, RGB Color Temperature, H/V Position, Over/Under Scan, Auto, Freeze Frame, PIP, PBP, On Screen Display, OSD Timer, Sleep Timer, False Color, Peaking, Blue Gun, Monochrome, Screen and Aspect Markers, HDMI Color Space (Auto, 709, 607, RGB)
Presets 12 User-Defined (3 per input)
Special Features Displays Red Camera, Canon 7D, Canon 5D, Canon 60D, Canon T2I, Canon T3I, Panasonic GH2, Canon DSLR Record & Playback Automatic Aspect Ratio
Aspect Ratios Fill All, 1:1 Pixel Mapping, Fill Aspect, 4:3, 16:10, 15:9, 16:9, 1.85:1, 2.35:1
Remote Control IR, remote included
Power Requirements 12V DC, 1300mA
Power Consumption <20W
Mounting 2 x 1/4" 20 threads at bottom and top (for upside-down mounting)
Buttons Brushed stainless steel
Power Connector 12V DC 5.5 x 2.1mm Barrel Connector
Dimensions (W x H x D) 9.6 x 6.4 x 1.6" (24.4 x 16.3 x 4.1 cm)
Weight 1.8 lb (0.8 kg)
