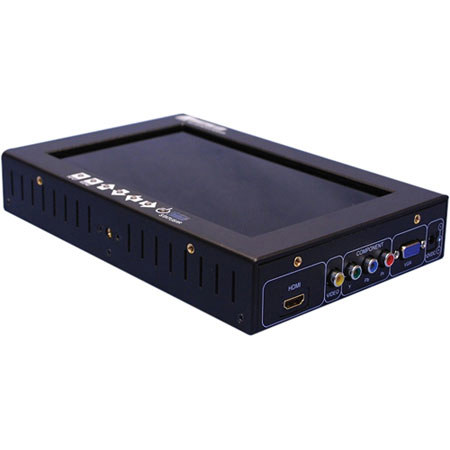

Manhattan LCD HD089C-P 8.9" HD Professional LCD Monitor with Panasonic Battery Plate, 1280x768 Native Resolution, 300 cd/m2 Brightness

Manhattan LCD
SKU: MHHD089CP MFR: HD089C-P
Manhattan LCD HD089C-P: Picture 1 thumbnail Manhattan LCD HD089C-P: Picture 2 thumbnail Manhattan LCD HD089C-P: Picture 3 thumbnail Manhattan LCD HD089C-P: Picture 4 thumbnail

See all shipping options

In Stock & Ready to Ship

Closeout

Our Price

$599.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Manhattan LCD HD089C-P

The HD089C-P 8.9" HD Pro LCD Monitor from Manhattan LCD is designed for advanced field monitoring at a reasonable price. The screen offers high-quality display output in a portable package that weighs less than 2 lb (0.9 kg). With a native resolution of 1280x768, the LCD displays video formats from SD to HD, 480i to 1080p - including PAL and NTSC as well as most imaginable HD and computer formats via HDMI, component and VGA inputs. (The display also has a composite video input for 480i.)

The field monitor allows you to adjust virtually all display parameters such as brightness, contrast, saturation, tint, gamma, etc. Advanced display features include false color, focus assist, under/over scan, monochrome, 1:1 pixel mapping and picture-in-picture. The LCD offers 12 user presets.

The HD089C includes a special aspect ratio for the Canon 50D, 60D, 5D, T2I and T3I cameras. These popular cameras are difficult to use with standard field monitors, as the cameras' preview and record modes require a custom aspect ratio to display the picture without distortion. The HD089C's "DSLR Rec" is an automatic aspect ratio that corrects Canon DSLR record and preview modes, providing a proper picture.

The monitor's False Color feature transforms video brightness to a colored scale that helps the operator in setting a camera's exposure. As the camera's exposure is adjusted, the picture changes colors based on brightness levels. Once this setting is locked in, you will know you are getting suitable exposure without expensive equipment.

Peaking (focus assist) shows you the position of the camera's focal plane. As you rack the focus back and forth you can see objects come in and out of focus by way of a bright white outline. Other convenient features include upgradeable firmware, NTSC/PAL auto-detect and two 1/4"-20 mounting threads - one on top, one on bottom, for increased versatility. This version of the monitor includes a plate for a Panasonic CGP series battery.

Manhattan LCD HD089C-P Features

  • The monitor's LCD controller has a firmware-upgradable processor chipset from industry leader Pixelworks
  • The monitor is completely digital, from the TFT screen to the driver board. High-speed triple ADC supports NTSC/PAL/SECAM, including all substandard. There's an adaptive five-line comb filter and it processes at 1 billion colors
  • Advanced picture and image controls (refer to Specifications)
  • 1:1 pixel mapping for more precise focus, plus 16:9, 4:3, Fill to Aspect and Fill All
  • Over/under-scan, aspect guides, screen markers
  • Supports 480i/480p/576i/576p/720p/1080i/1080p at 24/25/30/50/60 Hz
  • HDMI colorspace supports YCbCr 4:4:4, YCbCr 4:2:2 and RGB 4:4:4 at 8/10/12-bit

Manhattan LCD HD089C-P Specifications

LCD Size
8.9 in
Resolution
1280 x 768 (WXGA)
Contrast Ratio
500:1
Brightness
300 cd/m2
Response Time
25 ms (Full On/Off)
Viewing Angle
140deg. (Left/Right) x 110deg. (Up/Down)
Inputs: HDMI x1
Supports 1080p, 1080i, 720p, 576p, 576i, 480p, 480i; HDCP
Inputs: VGA x1
Supports 640 x 480, 800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 1024, 1366 x 768, 1920 x 1080
Inputs: Component x1
1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Inputs: Composite x1
Supports 576i, 480i
Picture Controls
Brightness, Contrast, Saturation, Tint, Sharpness, Gamma, RGB Color Temperature, H/V Position, Over/Under Scan, Auto, Freeze Frame, PIP, PBP, On Screen Display, OSD Timer, Sleep Timer, False Color, Peaking, Blue Gun, Monochrome, Screen and Aspect Markers, HDMI Color Space (Auto, 709, 607, RGB)
Presets
12 User-Defined (3 per input)
Special Features
Displays Red Camera, Canon 7D, Canon 5D, Canon 60D, Canon T2I, Canon T3I, Panasonic GH2, Canon DSLR Record & Playback Automatic Aspect Ratio
Aspect Ratios
Fill All, 1:1 Pixel Mapping, Fill Aspect, 4:3, 16:10, 15:9, 16:9, 1.85:1, 2.35:1
Remote Control
IR, remote included
Power Requirements
12V DC, 1300mA
Power Consumption
<20W
Mounting
2 x 1/4" 20 threads at bottom and top (for upside-down mounting)
Buttons
Brushed stainless steel
Power Connector
12V DC 5.5 x 2.1mm Barrel Connector
Dimensions (W x H x D)
9.6 x 6.4 x 1.6" (24.4 x 16.3 x 4.1 cm)
Weight
1.8 lb (0.8 kg)
Mfr #
HD089C-P
SKU
MHHD089CP
