Manhattan LCD

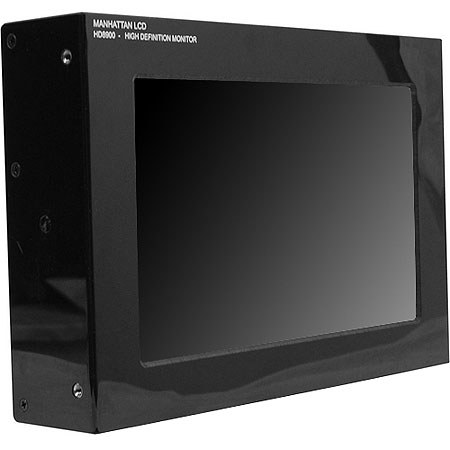

Manhattan LCD HD8920 8.9" HD Professional LCD Monitor, Dual Channel SDI, 1280x768, 500:1, 250 CDM

SKU: MHHD8920 MFR: HD8920
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Shipping

Add to Wishlist In Stock

About the Manhattan LCD HD8920

Manhattan LCD's ultra professional HD8920 720p 8.9" HD Pro Monitor (Dual HD-SDI) pulls out all the stops. It's a customizable, fully HD compatible widescreen LCD monitor that delivers sharp, high-resolution 1280 x 768 images in just about any form-or resolution-you can imagine. Offering advanced color controls, multiple professional inputs, customizable aspect ratios and overscan/underscan, the 8.9" display is a professional piece of equipment that will make even RED users happy.

Whether shooting run-and-gun with a video DSLR or lifting your camcorder high on the end of a jib, the HD8920 helps you frame and focus your HD images with complete confidence. Other convenient features include image flip (for use with 35mm adapters) and rotate, adjustable color temperature, NTSC/PAL switchability and three 1/4"-20 mounting threads (top/left/bottom) for increased versatility.

Manhattan LCD HD8920 Includes

  • Manhattan LCD HD8920 8.9 inch HD Professional LCD Monitor
  • Remote Control
  • Manhattan 2 Years Warranty

Manhattan LCD HD8920 Features

  • Good brightness (250cd/m2) and excellent contrast (500:1) combat ambient light while displaying the whitest whites and blackest blacks.
  • Includes custom image sizing and variable aspect ratios (4:3, 16:9, 16:10, 2.35:1, 2:1, 1:1).
  • Wide viewing angles (179°/179°) for bright off-axis viewing
  • Blue gun for calibration
  • RED tested-shows full RED camera menus without cropping
  • 4-pin XLR connector for use with power bricks

Manhattan LCD HD8920 Specifications

LCD Architecture 8.9" LCD WXGA (1280x768)
Contrast 500:1
Brightness 250 Nits (LED Backlamp)
Display Color 256k (Digital) or 16.7 Million (Analog)
Response Time 25 ms, full on/full off
Viewing Angle (L/R/U/D) 179 / 179 degrees
Surface Finish Antiglare or Glossy
Picture Controls Brightness - Contrast - Saturation - Hue - Sharpness
4:3 - 16:9 - 16:10 - 2.35:1 - 2:1 - 1:1 - Custom Sizing - Overscan and Underscan
Picture Flip and Rotate
Red Green Blue Level - 5000K - 6500K - 8000K - 9300K - Red Green Blue Monochrome
Blue Only for Calibration
Picture in Picture - On Screen Display - Multi Language - Freeze Frame
Infrared Remote Control - Full Access to OSD
Case 0.125" Polycarbonate
Inputs DVI - HDMI (HDCP) - 1 Input, Supports 1080p, 1080i, 720p, 576p, 576i, 480p, 480i and VESA and IBM
HDSDI - Dual Channel - SMPTE 259M-C - Supports 1080p 30Hz, 1080p 25Hz, 1080i 60Hz, 1080i 50Hz, 720p 60Hz, 720p 50Hz, 576p 50Hz, 480p 60Hz, 576i 50Hz and 480i 60Hz
Component: 1 Input, Supports 1080p, 1080i, 720p, 576p, 480p, 60Hz, 50Hz, 30Hz and 24Hz
Video and S-Video: 1 Input Each, Support 480i, 576i, 60Hz and 50Hz
Power 12v DC - Built Power Regulator - 4 Pin XLR Power <30 Watts
Power Connector 5.5mm X 2.5mm Barrel Connector
Dimensions 9.8" x 6.8" x 2.0" (W x H x D)
Weight 2.1 LBS
