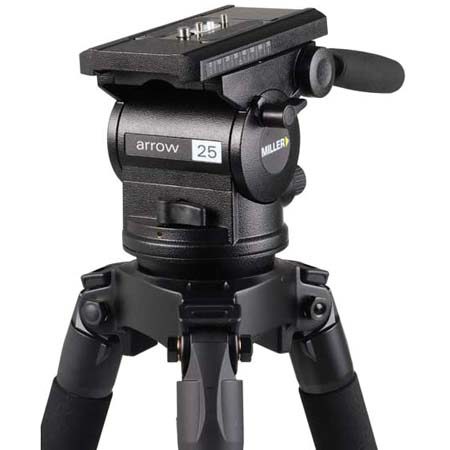

Miller Arrow 25 Fluid Head with Quick Release Camera Plate, Payload Capacity: 30 lbs

SKU: MIA25

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Miller Arrow 25 Specifications

  • Payload Range

    3.5 to 14 kg (7-30 lbs)

  • Camera Plate

    1/4"+pin, 1/4"+3/8"

  • Mounting

    100mm ball leveling

  • Tilt Drag

    5 selectable fluid drag positions + 0

  • Pan Rotation

    360°

  • Pan Lock

    Calliper disc brake system

  • Temperature Range

    -40°C to +65°C

  • Pan Handle

    Fixed length

  • Payload Capacity

    14 kg (30.8 lb)

  • Height Above Bowl

    162 mm (6.4 in)

  • Camera Platform Type

    Quick release and sliding platform

  • Tilt Lock

    Calliper disc brake system

  • Tilt Range

    +/-90°

  • Pan Drag

    5 selectable fluid drag positions + 0

  • Counterbalance

    4 selectable positions

  • Illumination

    Bubble level and pan/tilt indicators

  • Head Weight

    3 kg (6.6 lb)

  • Warranty

    Miller 3 year warranty

About Miller Arrow 25

The Arrow 25 is a new 100 mm fluid head designed to support the latest generation in acquisition from the film-ready HDV alternatives to the lightweight ENG camcorders providing outstanding fluid drag performance.

Arrow 25 features 5+5 selectable pan/tilt drag (plus '0') to provide repeatable light to heavy drag settings. Selectable 4 position counterbalance and 70 mm sliding camera platform to balance a wide range of camera loads from 3.5-14 kg makes the Arrow 25 one of the most versatile camera support platforms available.

Miller Arrow 25 Features

  • Payload range from 3.5-14 kg
  • 5 (plus zero) positions of fluid pan and tilt drag
  • 4 position of counterbalance
  • 70 mm Quick release sliding platform
  • 100 mm ball leveling
  • Rear mounted controls
  • White illumination of bubble level and indicators for pan and tilt

Key Features

  • Payload range from 3.5-14 kg
  • 5 (plus zero) positions of fluid pan & tilt drag
  • 4 position of counterbalance
  • 70 mm Quick release sliding platform
  • 100 mm ball leveling
  • Rear mounted controls

What's in the box:

  • Miller Arrow 25 Fluid Head
  • Quick Release Camera Plate
  • 21/23 Battery
  • Miller 3 Year Warranty
