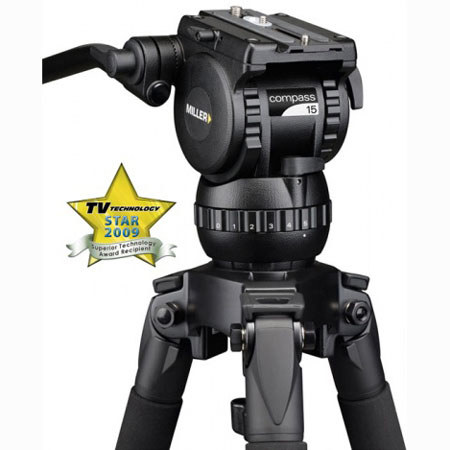

Miller Compass 15 Fluid Head with Quick Release Mini Euro Plate, Supports Up to 19.8 lbs

Miller

List Price: $1,906.00

19% Off

Our Price

$1,535.50
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Miller Compass 15

The Miller System Compass 15 fluid head provides professional performance for the latest generation of lightweight HDV/ DVCAM/ XDCAM and P2HD cameras with payloads between 2-9kg. With the best pan and tilt fluid drag range in its class and combined with a selectable counterbalance system the versatile Compass 15 and its high quality construction ensures reliability in the toughest conditions.

Miller Compass 15 Features

  • Five selectable positions of high performance drag plus a zero position
  • Selectable counterbalance system for payloads between 2-9kg
  • Quick release, 60mm sliding camera plate
  • Readily accessible controls and illuminated bubble level
  • Superior pan/tilt locks utilizing disc brakes
  • Replaceable tilt end rosette

Miller Compass 15 Specifications

Sliding Range
60mm
Payload Range
2-9
Payload Capacity
9.00 kg (19.8 lbs)
Camera Platform Type
Quick release sliding camera plate
Camera Plate
1/4" Pin, 1/4" and 3/8 screws
Mounting
75mm ball leveling
Tilt Drag
5 selectable fluid drag positions + 0
Tilt Range
+90/-75°
Tilt Lock
Calliper disc brake system
Pan Drag
5 selectable fluid drag positions + 0
Pan Range
360°
Pan Lock
Calliper disc brake system
Counter balance System
4 selectable positions
Temperature Range
-40°C to +65°C
Pan Handle
Fixed length
Illumination
Bubble level
Height Above Bowl
168 mm (6.6 in)
Weight
2.50 kg (5.5 lbs)
Warranty
Miller System 3 years warranty
