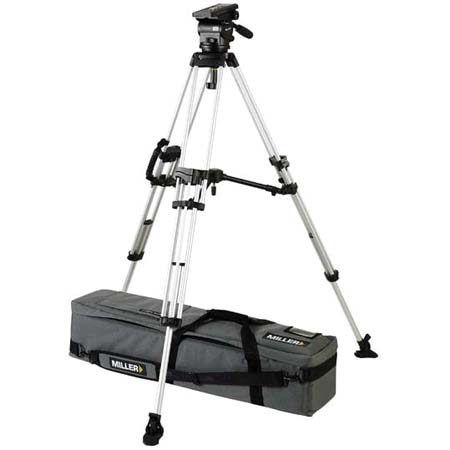

Miller Arrow 25 Fluid Head with Sprinter II 2-Stage Alloy Tripod and Sprinter/HD Mid Spreader, Supports Up to 30 lbs

SKU: MISA251580MS MFR: 1774
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$6,486.00 List Price

Our Price

Free Expedited Shipping
Add to Wishlist

About this item

The Arrow 25 is a new 100 mm fluid head designed to support the latest generation in acquisition from the film-ready HDV alternatives to the lightweight ENG camcorders providing outstanding fluid drag performance. Arrow 25 features 5+5 selectable pan/tilt drag (plus '0') to provide repeatable light to heavy drag settings. Selectable 4 position counterbalance and 70 mm sliding camera platform to balance a wide range of camera loads from 3.5-14 kg.

The new Sprinter II ENG tripod range features Miller Sprint-Locks-Dual side-action leg locks that let you independently adjust both stages of a 2-stage tripod using one hand. Each tripod leg has two sprint-locks, co-located on the upper leg clamp. The result is a high speed adjustment, no more bending down to adjust the lower tripod stage.

What's Included With This Item

  • Miller Arrow 25 Fluid Head (1022)
  • Sprinter II 2 Stage Alloy Tripod (1580)
  • Sprinter/HD Middle Spreader (990)
  • Sprinter/HD Tripod Rubber Feet (475)
  • Camera Plate (860)
  • Pan Handle with Handle Carrier (679)
  • Arrow Softcase (872)
  • Miller 3 Year Warranty

Key Features

  • Fluid Head 25 Features:
  • Payload range from 3.5-14kg
  • 5 (plus zero) positions of fluid pan and tilt drag
  • 4 position of counterbalance
  • 70mm Quick release sliding platform
  • 100 mm ball leveling
  • Rear mounted controls
  • White illumination of bubble level and indicators for pan and tilt
  • Sprinter II 2 Stage Alloy Tripod Features
  • Easily accessible, high speed dual action locks
  • Lightweight and rigid tripod construction
  • Tripods model suits fine height adjustable mid level spreader
  • Inline carry handle
  • Compatible with #475 Forever-flat rubber foot design
  • Rapid action transport clips

Technical Specs

Fluid Head Payload Range 3.5 to 14 kg (7-30 lbs)
Fluid Head Camera Plate 1/4"+pin, 1/4"+3/8"
Fluid Head Mounting 100mm ball leveling
Fluid Head Tilt Drag 5 selectable fluid drag positions + 0
Fluid Head Pan Rotation 360°
Fluid Head Pan Lock Calliper disc brake system
Fluid Head Temperature Range -40°C to +65°C
Fluid Head Pan Handle Fixed length
Fluid Head Payload Capacity 14 kg (30.8 lb)
Fluid Head Height Above Bowl 162 mm (6.4 in)
Fluid Head Camera Platform Type Quick release and sliding platform
Fluid Head Tilt Lock Calliper disc brake system
Fluid Head Tilt Range +/-90°
Fluid Head Pan Drag 5 selectable fluid drag positions + 0
Fluid Head Counterbalance 4 selectable positions
Fluid Head Illumination Bubble level and pan/tilt indicators
Tripod Tube configuration 2 Stage
Tripod Tube Material Alloy
Tripod Maximum Load 45 kg (100 lb)
Tripod Max Height 1530 mm (60.4 in)
Tripod Min Height 440 mm (17.3 in)
Tripod Transport length 700 mm (27.6 in)
System Transport length 862 mm (33.9 in)
System Height range 602-1692 mm (23.7-66.6 in)
Weight Fluid Head: 3 kg (6.6 lb)
Tripod: 3.5 kg (7.7 lb)
System: 10.45 kg (23.0 lb)
Warranty Miller 3 year warranty
