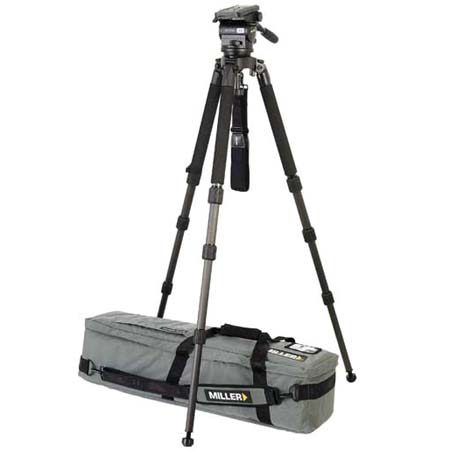

Miller Arrow 40 Fluid Head with SOLO ENG 3-Stage Carbon Fibre Tripod, Supports Up to 35 lbs

SKU: MISA401505

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Miller 40 1505 Specifications

  • Fluid Head Payload Range

    7-16 kg (15-35 lb)

  • Fluid Head Camera Plate

    1/4"+3/8"

  • Fluid Head Pan Drag

    7 selectable fluid drag positions + 0

  • Fluid Head Pan Rotation

    360°

  • Fluid Head Pan Lock

    Calliper disc brake system

  • Fluid Head Tilt Drag

    7 selectable fluid drag positions + 0

  • Fluid Head Tilt Angle

    +/- 90°

  • Fluid Head Tilt Lock

    Calliper disc brake system

  • Fluid Head Counterbalance

    4 selectable positions

  • Fluid Head Camera Platform

    Quick release camera plate with 1/4" & 3/8" screws

  • Fluid Head Sliding Range

    70 mm (+/- 35 mm)

  • Fluid Head Height Above Bowl

    162 mm

  • Fluid Head Mounting Base

    100 mm ball leveling

  • Fluid Head Illuminated Controls

    Bubble level & pan/tilt indicators

  • Fluid Head Temperature Range

    -40°C to +65°C

  • Fluid Head Pan Handle

    Telescopic

  • Tripod Bowl Diameter

    100 mm (3.9 in)

  • Tripod Payload Capacity

    30 kg (66 lb)

  • Tripod Lock Type

    Concentric

  • Tripod Maximum Height

    1870 mm (73.6 in)

  • Tripod Minimum Height

    220 mm (8.7 in)

  • Tripod Transport Length

    658 mm (25.9 in)

  • Tripod Tube Type

    Carbon Fibre

  • Tripod Construction

    3-Stage

  • System Transport length

    820 mm (32.3 in)

  • System Height range

    382-2032 mm (15-80 in)

  • Weight

    Fluid Head: 3.2 kg (7.1 lb)
    Tripod: 3.1 kg (6.8 lb)
    System: 9.3 kg (20.5 lb)

  • Warranty

    Miller 3 year warranty

About Miller 40 1505

The Arrow 40 fluid head performance and features has evolved from the demanding world of news gathering. Strength, durability and smooth fluid action have been combined in a simple-to-operate fluid head offering 7 positions of pan and tilt drag in addition to its many other features. The Arrow 40 offers the widest range and heaviest drag in its class. From fast-action sports shooting to long, slow pans the Arrow 40 exceeds in precision, quality and features for the ENG operator.

The Miller Solo ENG has changed how cameraman view telescopic tripods by achieving incredibly high torsion rigidity in the lightest 100mm Carbon fiber/magnesium design. Boasting an incredible 8" - 73" height range, this 3-stage ring locking tripod collapses down to a dwarf-like 25 1/2". Designed for video journalists on the run, Solo ENG is ultra-light and ultra-versatile, utilizing leg angle locking to eliminate the need for a spreader, and to reduce overall system weight and complexity.

Miller 40 1505 Features

  • Fluid Head 40 Features:
  • Payload ranges from 7-16kg
  • 7 (plus zero) positions of fluid pan and tilt drag
  • 4 position of counterbalance
  • 70mm Quick release sliding platform
  • 100 mm ball leveling
  • Rear mounted controls
  • White illumination of bubble level and indicators for pan and tilt
  • SOLO ENG 3 Stage Carbon Fibre Tripod Features:
  • Supports all full size ENG/EFP camcorders
  • Eliminates Spreader with Leg Angle Lock
  • Safe, speedy 3-Stage ring lock leg clamping
  • 100mm industry standard ball leveling
  • Spike or wind-down rubber feet

Key Features

  • Fluid Head 40 Features:
  • Payload ranges from 7-16kg
  • 7 (plus zero) positions of fluid pan & tilt drag
  • 4 position of counterbalance
  • 70mm Quick release sliding platform
  • 100 mm ball leveling

What's in the box:

  • Miller Arrow 40 Fluid Head (1025)
  • SOLO ENG 3 Stage Carbon Fibre Tripod (1505)
  • Pan Handle with Handle Carrier (694)
  • Camera Plate (860)
  • 21/23 Battery
  • Solo Shoulder Strap (1520)
  • Arrow Softcase (872)
  • Miller 3 Year Warranty
