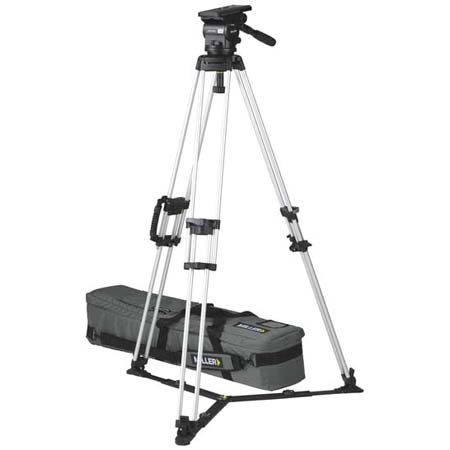

Miller 2-section Aluminum Tripod with Arrow 55 Fluid Head
See all Miller items

Miller Arrow 55 Fluid Head with Sprinter II Single Stage Alloy Tripod and Sprinter II Ground Spreader, Supports Up to 55 lbs

SKU: MISA551589GS
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Miller 55 1589 GS Specifications

  • Fluid Head Payload Range

    10-25 kg (22-55 lb)

  • Fluid Head Camera Plate

    1/4"+3/8"

  • Fluid Head Pan Drag

    7 selectable fluid drag positions + 0

  • Fluid Head Pan Rotation

    360°

  • Fluid Head Pan Lock

    Calliper disc brake system

  • Fluid Head Tilt Drag

    7 selectable fluid drag positions + 0

  • Fluid Head Tilt Angle

    +/- 90°

  • Fluid Head Tilt Lock

    Calliper disc brake system

  • Fluid Head Counterbalance

    4 selectable positions

  • Fluid Head Camera Platform

    Quick release camera plate with 1/4" & 3/8" screws

  • Fluid Head Sliding Range

    100 mm (+/- 50 mm)

  • Fluid Head Height Above Bowl

    162 mm

  • Fluid Head Mounting Base

    100 mm ball leveling

  • Fluid Head Illuminated Controls

    Bubble level & pan/tilt indicators

  • Fluid Head Temperature Range

    -40°C to +65°C

  • Fluid Head Pan Handle

    Telescopic

  • Tripod Bowl Diameter

    100 mm (3.9 in)

  • Tripod Payload capacity

    45 kg (99 lb)

  • Tripod Lock Type

    Sprint-Loks

  • Tripod Max Height

    1430 mm (56.3 in)

  • Tripod Min Height

    635 mm (25 in)

  • Tripod Transport Length

    840 mm (33.1 in)

  • Tripod Tube Type

    Alloy

  • Tripod Construction

    Single Stage

  • System Transport length

    1002 mm (39.4 in)

  • System Height range

    797-1587 mm (31.4-62.5 in)

  • Weight

    Fluid Head: 3.2 kg (7.1 lb)
    Tripod: 3.1 kg (6.8 lb)
    System: 10.45 kg (23.0 lb)

  • Warranty

    Miller 3 year warranty

About Miller 55 1589 GS

Heavy duty performance for ENG/EFP. The Arrow 55 fluid head provides higher load capacity to suit documentary, lifestyle, HD productions and is particularly suited to long-lens applications or Studio EFP configurations. Also featuring 7 positions of pan and tilt drag; the Arrow 55 is the heavy duty performer.

The new Sprinter II ENG tripod range features Miller Sprint-Locks, side-action leg locks. Miller's designers have updated the streamline design of the levers to bring you a more ergonomic feel to the lever-lock action. Single Stage Sprinters feature a singular Sprint-Lock side-action lever for single stage control.

Miller 55 1589 GS Features

  • Fluid Head 55 Features:
  • Payload ranges from 10-25kg
  • 7 (plus zero) positions of fluid pan and tilt drag
  • 4 position of counterbalance
  • 100mm Quick release sliding platform
  • 100 mm ball leveling
  • Rear mounted controls
  • White illumination of bubble level and indicators for pan and tilt
  • Sprinter II Single Stage Alloy Tripod
  • Easily accessible, high speed dual action locks
  • Lightweight and rigid tripod construction
  • Inline carry handle
  • Tripod model suits stable Ground Spreader
  • Rapid action transport clips

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Fluid Head 55 Features:
  • Payload ranges from 10-25kg
  • 7 (plus zero) positions of fluid pan & tilt drag
  • 4 position of counterbalance
  • 100mm Quick release sliding platform
  • 100 mm ball leveling

What's in the box:

  • Miller Arrow 55 Fluid Head (1028)
  • Sprinter II Single Stage Alloy Tripod (1589G)
  • Sprinter II Ground Spreader (470)
  • Camera Plate (860)
  • Pan Handle with Handle Carrier (694)
  • Arrow Softcase (870)
  • Miller 3 Year Warranty
