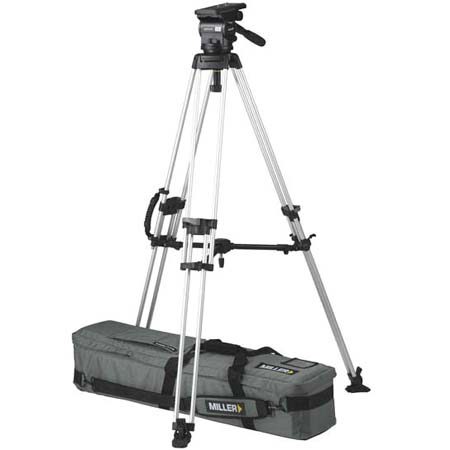

Miller 2-section Aluminum Tripod with Arrow 55 Fluid Head
See all Miller items

Miller Arrow 55 Fluid Head with Sprinter II Single Stage Alloy Tripod and Sprinter/HD Mid Spreader, Supports Up to 55 lbs

SKU: MISA551589MS
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Miller 55 1589 MS Specifications

  • Fluid Head Payload Range

    10-25 kg (22-55 lb)

  • Fluid Head Camera Plate

    1/4"+3/8"

  • Fluid Head Pan Drag

    7 selectable fluid drag positions + 0

  • Fluid Head Pan Rotation

    360°

  • Fluid Head Pan Lock

    Calliper disc brake system

  • Fluid Head Tilt Drag

    7 selectable fluid drag positions + 0

  • Fluid Head Tilt Angle

    +/- 90°

  • Fluid Head Tilt Lock

    Calliper disc brake system

  • Fluid Head Counterbalance

    4 selectable positions

  • Fluid Head Camera Platform

    Quick release camera plate with 1/4" & 3/8" screws

  • Fluid Head Sliding Range

    100 mm (+/- 50 mm)

  • Fluid Head Height Above Bowl

    162 mm

  • Fluid Head Mounting Base

    100 mm ball leveling

  • Fluid Head Illuminated Controls

    Bubble level & pan/tilt indicators

  • Fluid Head Temperature Range

    -40°C to +65°C

  • Fluid Head Pan Handle

    Telescopic

  • Tripod Tube Configuration

    1 Stage

  • Tripod Tube Material

    Alloy

  • Tripod Maximum Load

    45kg (100 lb)

  • Tripod Max Height

    1430 mm (56.3 in)

  • Tripod Min Height

    635 mm (25.0 in)

  • Tripod Transport Length

    840 mm (33.1 in)

  • Transport length

    1002 mm (39.4 in)

  • Height range

    832-1592 mm (32.8-62.8 in)

  • Weight

    Fluid Head: 3.2 kg (7.1 lb)
    Tripod: 3.1kg (6.8 lb)
    System: 10.75 kg (23.7 lb)

  • Warranty

    Miller 3 year warranty

About Miller 55 1589 MS

Heavy duty performance for ENG/EFP. The Arrow 55 fluid head provides higher load capacity to suit documentary, lifestyle, HD productions and is particularly suited to long-lens applications or Studio EFP configurations. Also featuring 7 positions of pan and tilt drag; the Arrow 55 is the heavy duty performer.

The new Sprinter II ENG tripod range features Miller Sprint-Locks, side-action leg locks. Miller's designers have updated the streamline design of the levers to bring you a more ergonomic feel to the lever-lock action. Single Stage Sprinters feature a singular Sprint-Lock side-action lever for single stage control.

Miller 55 1589 MS Features

  • Fluid Head 55 Features:
  • Payload ranges from 10-25kg
  • 7 (plus zero) positions of fluid pan and tilt drag
  • 4 position of counterbalance
  • 100mm Quick release sliding platform
  • 100 mm ball leveling
  • Rear mounted controls
  • White illumination of bubble level and indicators for pan and tilt
  • Sprinter II Single Stage Alloy Tripod
  • Easily accessible, high speed dual action locks
  • Lightweight and rigid tripod construction
  • Tripod suits fine height adjustable mid level spreader
  • Inline carry handle
  • Forever-flat rubber foot design
  • Rapid action transport clips

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Fluid Head 55 Features:
  • Payload ranges from 10-25kg
  • 7 (plus zero) positions of fluid pan and tilt drag
  • 4 position of counterbalance
  • 100mm Quick release sliding platform
  • 100 mm ball leveling

What's in the box:

  • Miller Arrow 55 Fluid Head (1028)
  • Sprinter II Single Stage Alloy Tripod (1589)
  • Sprinter/HD Middle Spreader (990)
  • Camera Plate (860)
  • Sprinter/HD Tripod Rubber Feet (475)
  • Pan Handle with Handle Carrier (694)
  • Arrow Softcase (870)
  • Miller 3 Year Warranty
