Miller

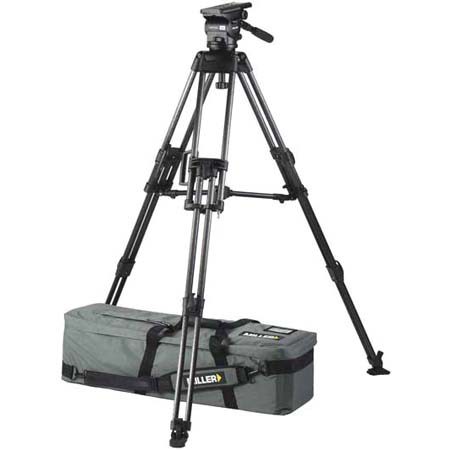

Miller Arrow 55 Fluid Head with Heavy Duty 2 Stage Carbon Fibre Tripod and Sprinter/HD Mid Spreader, Supports Up to 55 lbs

SKU: MISA55925MS MFR: 1741
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$9,694.00 List Price

Our Price

$7,811.96
Free Expedited Shipping
Qty:
Add to Wishlist

About this item

Heavy duty performance for ENG/EFP. The Arrow 55 fluid head provides higher load capacity to suit documentary, lifestyle, HD productions and is particularly suited to long-lens applications or Studio EFP configurations. Also featuring 7 positions of pan and tilt drag; the Arrow 55 is the heavy duty performer.

HD tripods are built with the strength and torsion rigidity to take the full ENG/EFP workload - extreme climates and temperatures to -40°C. It sports rock-solid stability for telephoto lens shooting with optimum payload security when supporting studio camera configurations. Heavy Duty ENG carbon fiber tripod features extended 2-stage height range for ENG.

What's Included With This Item

  • Miller Arrow 55 Fluid Head (1028)
  • Heavy Duty 2 Stage Carbon Fibre Tripod (925)
  • Sprinter/HD Mid Spreader (990)
  • Sprinter/HD Tripod Rubber Feet (475)
  • Pan Handle with Handle Carrier (694)
  • HD Softcase (974)
  • Miller 3 Year Warranty

Key Features

  • Fluid Head 55 Features:
  • Payload ranges from 10-25kg
  • 7 (plus zero) positions of fluid pan and tilt drag
  • 4 position of counterbalance
  • 100mm Quick release sliding platform
  • 100 mm ball leveling
  • Rear mounted controls
  • White illumination of bubble level and indicators for pan and tilt
  • Heavy Duty 2 Stage Carbon Fibre Tripod
  • Extended 2-stage height range for ENG
  • Tripod model suits adjustable mid level spreader
  • Split inline carry handle for balance
  • High strength 25mm cross-linked carbon fibre tubing
  • Quick set-up and easy maintenance flip locks
  • Reinforced 100mm bowl design

Technical Specs

Fluid Head Payload Range 10-25 kg (22-55 lb)
Fluid Head Camera Plate 1/4"+3/8"
Fluid Head Pan Drag 7 selectable fluid drag positions + 0
Fluid Head Pan Rotation 360°
Fluid Head Pan Lock Calliper disc brake system
Fluid Head Tilt Drag 7 selectable fluid drag positions + 0
Fluid Head Tilt Angle +/- 90°
Fluid Head Tilt Lock Calliper disc brake system
Fluid Head Counterbalance 4 selectable positions
Fluid Head Camera Platform Quick release camera plate with 1/4" & 3/8" screws
Fluid Head Sliding Range 100 mm (+/- 50 mm)
Fluid Head Height Above Bowl 162 mm
Fluid Head Mounting Base 100 mm ball leveling
Fluid Head Illuminated Controls Bubble level & pan/tilt indicators
Fluid Head Temperature Range -40°C to +65°C
Fluid Head Pan Handle Telescopic
Tripod Type 2 Stage
Tripod Material Carbon
Tripod Bowl Diameter 100 mm
Tripod Payload capacity 95 kg (210 lb)
Tripod Max Height 1590 mm (62.6 in)
Tripod Min Height 480 mm (18.9 in)
Tripod Transport Length 750 mm (29.5 in)
System Transport length 912 mm (35.9 in)
System Height range 642-1752 mm (25.3-69.0 in)
Weight Fluid Head: 3.2 kg (7.1 lb)
Tripod: 4.5 kg (9.9 lb)
System: 12.95 kg (28.5 lb)
Warranty Miller 3 year warranty
