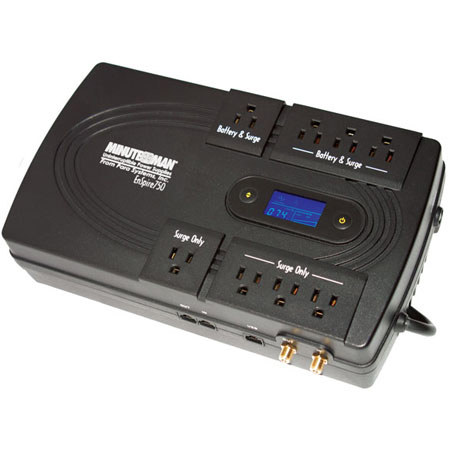

Minuteman EnSpire EN750 - 750VA/400W Standby UPS, 8 Outlets, Backlit LCD Display, USB Connectivity

See all Minuteman items
Made in USA

Our Price

$99.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Minuteman EN750

The Minuteman EnSpire EN750 is a low-cost, high performance Standby UPS that provides the features needed to protect your valuable equipment. The EN750 has eight (8) outlets, four (4) provide battery support along with spike and surge protection and four (4) with spike and surge protection only. In addition, all units have outlets which are specifically spaced to support transformer blocks. The EN750 has a small footprint and is uniquely designed with outlets on the top for placement on or under a desk or table. Moreover, the EN750 can be conveniently wall mounted for a neat & clean installation.

Minuteman EN750 Features

  • Minuteman SentryPlus Software: SentryPlus auto-shutdown and monitoring software is included. No special downloads or coupons are required
  • USB Communications: EnSpire UPS USB connections are automatically recognized by Microsoft Windows(tm) software. No special USB drivers are required. The EnSpire EN750 automatically recognizes USB connections with its HID-compliant USB communications
  • Telephone/Fax/Modem Line Protection: The EnSpire UPS provides a low-cost means of protecting telephone/fax/modem lines
  • RoHS Compliant: The EnSpire EN750 is manufactured using non-hazardous materials making them safer for the environment
  • Coax Cable Protection: Surge and spike protection for a coax cable line
  • Backlit LCD Display: LCD display that shows UPS information including estimated runtime, battery status and more

Minuteman EN750 Specifications

Maximum Power Capacity
750VA / 400W
Topology
Standby UPS
Input: Nominal Frequency
50 or 60Hz, ±5Hz, autosensing
Input: Voltage Range
100 - 140VAC
Input: Low Voltage Transfer Point
96V (± 3%) resets to utility power at 101V (± 3%) or higher
Input: High Voltage Transfer Point
146V (± 3%) resets to utility power at 140V (± 3%) or lower
Input: Surge Energy Rating
320 J
Input Protection
Resettable circuit breaker
Output: Voltage Range
Non-Battery Operation: 120VAC: 100 - 140VAC
Output: Frequency Range
Non-Battery Operation: 60Hz: 55 - 65Hz or 50Hz: 45 - 55Hz
Output: Waveform Type
Battery Operation: Simulated sine wave
Output: Nominal Voltage
Battery Operation: 120VAC
Output: Voltage Regulation
Battery Operation: Nominal +2%/-9% (until Low Battery Warning)
Output: Frequency
Battery Operation: 50/60Hz, ±0.5Hz (unless synchronized to utility)
Output: Transfer Time
Battery Operation: 6-8 ms Typical
Output: Overload Capacity
Battery Operation: 105% for 10-seconds, 120% Shutdown Immediately
Output: Protection
Battery Operation: Over-Current, Short-Circuit Protected and Latching Shutdown
Safety Approvals, EMC
cTUVus (Conforms to UL1778, CSA 22.2 standards), FCC Class B
Dimensions (L x H x W)
12.40 x 7.20 x 3.30" (314 x 183 x 83 mm)
Weight
9.40 lb (4.30 kg)
