Minuteman PRO1000RT - 1000VA/700W Line interactive UPS


Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Availability: Special Order Special Order - Usually ships in 3-7 days.
Your card will only be charged once item ships.

Free Shipping

See all shipping options

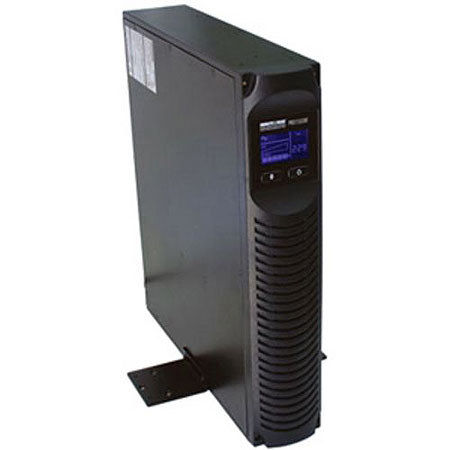

Minuteman PRO1000RT: Picture 1 regular $299.00

About Minuteman PRO1000RT

The Minuteman PRO1000RT 1000VA/700W Rack/Tower/Wallmount UPS incorporates line-interactive technology that preserves battery power by providing voltage regulation during brownouts or voltage sags. The PRO1000RT can be used to support servers, telecom or VoIP systems, security systems, plus many other applications. An LCD display provides visual notification of power status, including input voltage, frequency, percent of battery charge, estimated runtime, plus many other conditions.

It includes SentryPlus power management and diagnostic software. When installed on a workstation or server, the user gains complete control over monitoring and managing the UPS using a convenient web browser based interface. The SentryPlus software communicates via a built-in USB port or through a RS-232 connector on the UPS.

In addition, managing the UPS within a Network Management System (NMS) is easy with the installation of an optional SNMP card. Designed for versatility, the PRO1000RT can be mounted in a standard rack using the included rackmount ears. These ears can also be attached to the unit to allow it to stand as a tower. An optional kit is available for mounting the unit to a wall.

Minuteman PRO1000RT Features

  • LCD Display: Shows UPS operating status
  • Rack/tower installation (2U rack height) or wall mounting with optional kit
  • Minuteman SentryPlus Software: SentryPlus auto-shutdown and monitoring software is included
  • RS-232 and USB Communications: No special USB drivers are required for USB communications. Both units are automatically recognized by Microsoft Windows as HID compliant devices - similar to a mouse or a keyboard
  • SNMP compatible: The PRO1000RT unit can be managed on a network with the addition of an optional SNMP management card
  • Fax/Modem/Network Line Protection: The PRO1000RT UPS provides a low cost means of protecting fax/modem/network lines
  • RoHS Compliant: The PRO1000RT is manufactured using non-hazardous materials making them safer for the environment and a green-friendly addition to any data center

Minuteman PRO1000RT Specifications

VA Rating
Max Output Power
Output Receptacles
(6) NEMA 5-15R Battery & surge
(2) NEMA 5-15R Surge only
Input Connection
10 ft. Power cord with NEMA 5-15P
Input: Voltage Range
Non-Battery Operation: 90 to 150VAC
Input: Frequency Range
Non-Battery Operation: 50/60Hz ±5Hz, auto-sensing
Input: AC Leakage Current
Non-Battery Operation: <1.0mA at full rated non-linear load
Input Protection
Non-Battery Operation: Resettable circuit breaker
Output: Voltage Range
Non-battery operation: 104 to 132VAC
Output: Frequency
Non-battery operation: 50/60Hz ±5Hz
Output: Efficiency (AC-AC)
Non-battery operation: >90% at full rated non-linear load
Output: Voltage
Battery Operation: 120VAC
Output: Voltage Regulation
Battery Operation: Nominal ±5% until low battery warning
Output: Frequency (battery operation)
50/60Hz, ±0.5Hz (unless synchronized to utility)
Output: Wave Form
Battery Operation: Simulated sine wave
Output: Typical Transfer Time
Battery Operation: 6-10 ms (max 10ms)
Output: Overload Capacity
Battery Operation: 110% for 10 seconds, 120% shutdown immediately
Output Protection
Battery Operation: Over-current, short-circuit protected and latching shutdown
Output: Estimated Runtimes
Battery Operation: 5 min. / 16 min. (Full /Half Load)
Hot Swappable Battery
DC Leakage Current
<30uA (±10uA) with no AC applied and the unit in the off position
Battery Type
Sealed, non-spillable, maintenance-free, valve-regulated lead acid
Surge Energy rating
1140 joules
Surge Current Capacity
6500 Amps total
Surge Response Time
0-ns (instantaneous) normal mode; <5ns common mode
Agency Approvals
cTUVus (conforms to UL1778, CSA 22.2 standards), CE
EMI/RFI Filtering
FCC Part 15 Class B, EN5022, EN61000-6-1, EN61000-6-3, EN61000-4-5
Temperature: Operating (Storage)
0 Deg. to +40 Deg.C / +32 Deg. to +104 Deg.F (-15 Deg. to +45 Deg.C / +5 Deg. to 113 Deg.F)
Humidity: Operating & Storage
0 to 95% non condensing
Elevation: Operating (Storage)
0 to +3,000 m / 0 to +10,000 ft (0 to +15,000 m / 0 to +50,000 ft)
Dimensions (H x W x D)
3.5" x 17.3" x 15.7" / 89 x 440 x 398 mm
35.1 lbs / 15.9 kg
