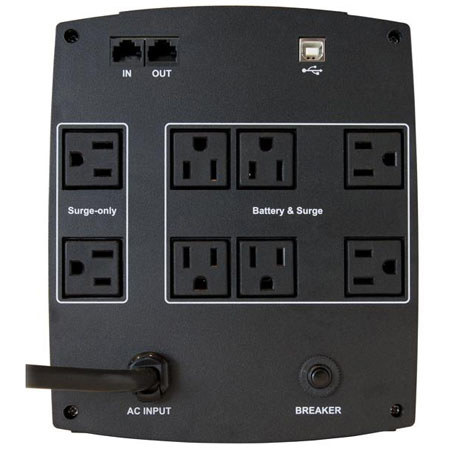

Minuteman PRO1100LCD 1100 VA Line Interactive UPS with 8 Outlets, 760 Joules

See all Minuteman items
SKU: MNPRO1100LCD MFR: PRO1100LCD
Minuteman PRO1100LCD: Picture 1 thumbnail Minuteman PRO1100LCD: Picture 2 thumbnail
Made in USA

Our Price

$269.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Minuteman PRO1100LCD

The Minuteman PRO1100LCD Uninterruptible Power Supplies (UPS) delivers complete protection from electrical problems - spikes, surges, sags, brownouts and blackouts. The PRO1100LCD is amazingly compact and take up little space on the desktop or under a console. The PRO1100LCD is only slightly larger in physical size and offers an expansive six (6) outlets with battery backup and surge along with two (2) surge-only protected receptacles.

This unit features heavy power-handling capabilities found in much larger-sized models. This size-to-power ratio makes them ideal for high-power requirement devices installed in cramped quarters.

Minuteman PRO1100LCD Features

  • Designed for PCs, telephone and security systems and data communications
  • Protects equipment from harmful AC power surges and spikes
  • Provides battery backup to equipment during a blackout
  • Built-in boost and buck AVR (Automatic Voltage Regulation) function compensates for broader range of AC voltage situations like surges and spikes, saving internal battery power for blackouts and extending the life of the batteries
  • Integrated USB port for software communications
  • Hot-swappable batteries for easy battery replacement
  • Independent Battery Bypass allows the UPS to provide voltage regulation with surge or spike protection even when batteries are weak or dead
  • 8 outlets (6 outlets with battery backup / surge protection and 2 outlets with surge protection only)

Minuteman PRO1100LCD Specifications

Load Capacity
1100VA /770W
Topology
Line-Interactive
Agency approvals
cTUVus (conforms to UL1778, CSA 22.2 Standards), CE, FCC Class B
Battery-backup / Surge-protected outlets
6 NEMA 5-15R
Surge-only outlets
2 NEMA 5-15R
Input Voltage range
Default settings: 90V to 150V
Input Frequency range
50/60Hz auto-sensing ± 5Hz
Output Voltage range
Default Setting: 104VAC to 132VAC
Output Frequency
50/60Hz ± 5Hz
Output Surge protection
760 Joules
Output Voltage (battery operation)
120VAC
Output Voltage regulation (battery)
±5% until low battery warning
Output Frequency (battery operation)
±0.5Hz unless synchronized to AC line
Wave form
Simulated Sine Wave (Step Wave)
Typical transfer time
6 ms typical, 10 ms max.
Communications port
Universal Serial Bus (USB) communications cable and Minuteman SentryPlus power management and diagnostic software included
LCD status indicators
AC Normal, On Battery, AVR Mode (Boost & Buck; AC Normal will flash), Overload Icon, Site Wiring Fault (S.L.F.), Internal Fault (F.A.L)
LCD meter display
Input & Output Voltage, Input & Output Frequency, Connected Load Capacity, Battery Capacity, Estimated Runtime
Audible alarms
On Battery, Low Battery, Internal Fault, Overload, Weak/Bad/Disconnected Battery
Hot-swappable battery
Yes
Internal battery
Yes
Battery module type
BM0050
Battery system
36VDC
Typical recharge
8 hours to 90% from total discharge
Dimensions (H x W x D)
7.9 x 6.7 x 14.6" / 20.0 x 17.0 x 37.0cm
Weight
34.20 lb / 15.51kg
