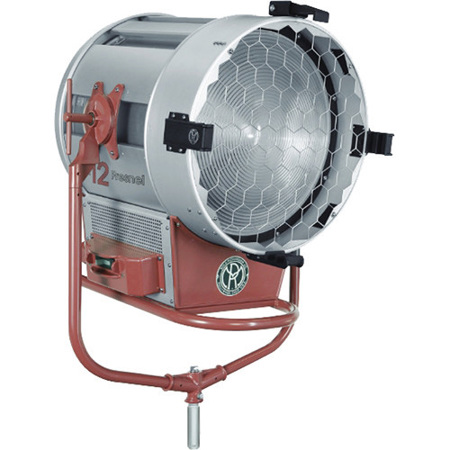

Mole-Richardson 12,000 Watt Molequartz Baby Twelver Fresnel Solarspot, 17-1/2" Lens

See all Mole-Richardson items
SKU: MR4171 MFR: 4171
Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $184.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $229.95

Our Price

$4,664.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Mole-Richardson 12000 Watt Molequartz

The Mole-Richardson introduced a new member to the Baby Fresnel family of tungsten fixtures, the Type 4171 12,000-watt Baby "Twelver" Solarspot. Using design characteristics from the Baby line as well as the popular 20K Big "Mole" Fresnel, the fixture features a 17-1/2" lens, tilt out rear door and dramatically improved cooling. The new Baby Twelver provides an average light output increase of 45% over existing 14" Fresnels and spread that is reminiscent of the industry standard 20" 10K's found all over the world.

Mole-Richardson 12000 Watt Molequartz Specifications

Head
12,000 watts
Rating
120, 230/240 volts. A.C. or D.C., 50 amps max., 12,000 watts max
Socket
G38, Mogul bipost. Cam-activated friction contacts
Switch
100 amp., quick-make, quick-break. Mounted in trough
Cable
Attached 3 ft. #4/1 Entertainment cable with #6/1 ground and MC258G male plug
Construction
Aluminum with interlocking channels and perforated steel trough
Yoke
Tubular aluminum and aluminum castings with removable 1 1/8" dia. steel yoke pin
Condenser
17-1/2" dia. curved Fresnel lens of glass
Mirror
Alzak Aluminum
Focusing
Hand crank at rear
Finish
Clear Anodized Aluminum
Dimensions (HxLxW)
With Yoke: 39-5/8x25-1/8x24-3/4"(100.64x63.81x62.86cm)
Without Yoke: 26-3/8x25-1/8x24-3/4" (66.99x63.81x62.86cm)
Weight
60-1/4lbs (27.32kg)
