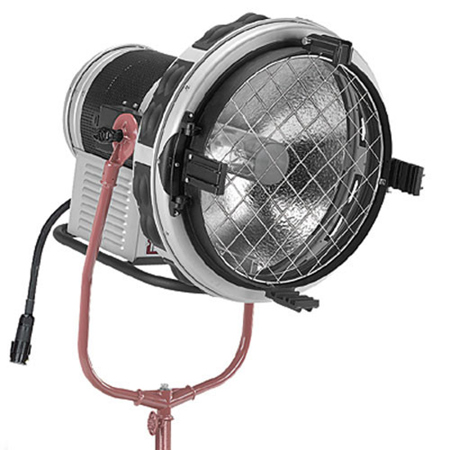

Mole-Richardson 12/18KW Molepar HMI Fixture

SKU: MR6791 MFR: 6791
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$12,874.95
Free Shipping
Qty:
Add to Wishlist

About this item

The Mole-Richardson 12/18KW Molepar HMI Fixture includes a redesigned curved yoke, allowing the head to pivot to steeper angles. Use it for lighting large indoor and outdoor sets where daylight illumination is required.

This HMI Molepar can be safely used on Condor or Power lifts and is a highly efficient compact source of daylight using a 12,000 watt HMI single ended globe (available separately). Four separate lenses are available, Extra Wide, Wide, Medium and Narrow Beam for varied lighting applications. A safety screen is included.

When fitted with a ballast and 12,00 watt HMI Lamp, with no lens attached, this fixture will supply a 4.3' (1.3 m) diameter beam of 27,440 fc from a distance of 25' (7.6 m). At 200' (60.96 m), it will throw a 34.4' (10.4 m) diameter beam of 430 fc.

Key Features

  • Solid and perforated aluminum chassis
  • Aluminum tube yoke and trunion castings
  • Knob on rear of unit allows 1- f/stop adjustment
  • Extra wide, wide, spot, narrow lens assemblies are available separately
  • On-Off, hot-restrike switches on rear of fixture

Technical Specs

Rating 12,000 or 18,000 watts
240VAC, 60Hz, 75A
Socket (Lampholder) Heavy Duty Bi-Post
Lens (Condenser) Optional
Mounting Junior - 1-1/8"
Weight 67 lbs (30.39kg)
