Mole-Richardson HMI 12/18KW PAR Kit (208-240VAC)

SKU: MR679110 MFR: 679110
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

Our Price

Free Shipping
Add to Wishlist

About this item

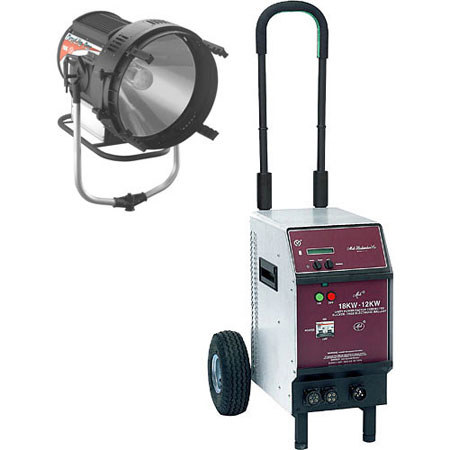

The Mole-Richardson HMI 12/18KW PAR Kit is based on the Molepar, but with a re-engineered trough it achieves a more compact design over the previous model. This fixture also includes a redesigned curved yoke, allowing the head to pivot to steeper angles. Use it for lighting large indoor and outdoor sets where daylight illumination is required. Weighing only 67 lbs, this lightweight, HMI Molepar can be safely used on Condor or Power lifts and is a highly efficient compact source of daylight.

When fitted with a 12K HMI bulb (available separately) and no accessory lens, this fixture will turn night into day with a beam of 27,440 footcandles, from a distance of 25'. Its beam diameter at that distance will be 4.3'.

Using the included accessory lenses, scrims and barndoors will alter the beam spread, shape and intensity. A 50' head-to-ballast cable is included, but an HMI lamp must be purchased separately.

What's Included With This Item

  • Mole-Richardson 12/18KW Molepar HMI Fixture
  • 12-18KW Electronic HMI Ballast (208-240V)
  • 4 Way/4 Leaf Barndoor Set for 12Kw Tungsten PAR
  • 50' Head to Ballast Extension Cable for 12/18K HMI
  • Narrow Lens Assembly for 12Kw Tungsten PAR (21")
  • Medium Lens Assembly for 12Kw Tungsten PAR (21")
  • Wide Lens Assembly for 12Kw Tungsten PAR (21")
  • Mole-Richardson Warranty (See Specs Section for More Item Includes)

Key Features

  • Fixture: Redesigned for lighter weight and greater stability
  • Fixture: Four separate lenses are included: Extra Wide, Wide, Medium and Narrow Beam for varied lighting applications.
  • Fixture: Barndoors and scrims allow additional light-shaping
  • Ballast: Type 66065 solid-state, electronic, flicker-free ballast is dimmable
  • Ballast: Hot Restrike capability
  • Ballast: Double circuit breaker and red indicator light
  • Ballast: Includes a wheeled cart with handle

Technical Specs

Light Fixture: Rating 12,000 - 18,000 watts
Light Fixture: Socket (Lampholder) G-38 bi-post, porcelain
Light Fixture: Lens (Condenser) 21", 4 lenses and box included
Light Fixture: Mounting 1-1/8" Pin
HMI Ballast: Rating 12-18Kw, 208-240VAC 50-60Hz, 80A
HMI Ballast: Cable 50', included
Other Item Includes Extra Wide Lens Assembly for 12Kw Tungsten PAR (21")
660186 Lens Box for 12K PAR Lenses
21" Half Double Wire Scrim
21" Full Double Wire Scrim
21" Full Single Wire Scrim
Dimensions HMI Ballast: 27x20.5x30" (68.5x52x76.2cm)
Weight Light Fixture: 67 lbs (30.4kg)
Kit: 220 lbs (100kg)
