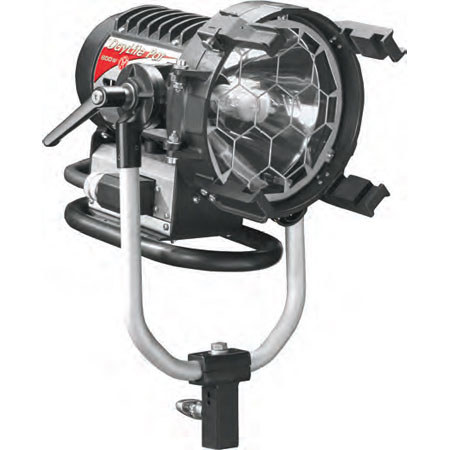

The Mole-Richardson 800W HMI DayLite Par is designed for Motion Picture, Television, Event and ENG/EFP Professionals worldwide. The solid cast aluminum construction features dramatically improved strength and cooling, while the Brytal Aluminum parabolic reflector provides over 95% reflectivity. The electronics in the fixture are contained in a low-profile trough totally isolated from the main housing and feature a swing-out trap door for easy access to the igniter and safety switch.
The fixture has visual and tactile focal indicators to determine lamp position and, when used with the interchangeable lenses, the field of light can be fine-tuned for optimum beam control. Other features include: a trough skid for operating and safe transportation; a low-profile yoke with a 5/8" baby receiver; a locking, hinged front door for easy lamping; and a "pig-tail" style electrical input. Standard on all fixtures are a stainless steel safety screen, spring loaded fourth accessory clip and variable accessory clip positions located at either 90deg. or 45deg.
|Head||Type 6821 800 Watts|
|Rating||100 volts, AC, 9 amps max|
|Sockets||G22, Heavy duty electrical grade porcelain body with friction type bi-post brass inserts|
|Switch||ON and OFF push-button switches mounted on rear of fixture. May be re-ignited when hot|
|Safety Switch||Interlock micro-switch at door shuts off power to globe sockets when door is opened. Globe cannot be turned on until door is closed|
|Cable||Attached 7-conductor, with male interlocking "Veam" type connector|
|Head Construction||Rugged construction of cast and sheet aluminum|
|Yoke||Aluminum tubing and cast aluminum trunnions with 5/8" dia. Baby receiver|
|Reflector||Highly polished Alzak Aluminum Parabolic Reflector|
|Finish||Clear Anodized Aluminum/Black Powder Coated Enamel|
|Dimensions (WxHxL)||Without Yoke: 10.75x10.75x14.5" / 273.05x273.05x368.3mm
With Yoke (H): 19.25" / 488.95mm
|Weight||With Cable: 13lbs / 5.90kg|
