Made in USA
Mole-Richardson 800 Watt HMI DayLite Par Kit with Case

SKU: MR682101 MFR: 682101

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Availability: In Stock Online In Stock Online - Usually ships within 1-2 Days

Free Shipping

See all shipping options

Product Highlights

  • Dimmable to 50% of full power
  • Multi-Voltage - 90-260VAC, auto-sensing
  • Microprocessor control, constant power output
  • Four lenses - Narrow, Medium, Wide, Extra Wide, each helps to shape the light spread
  • Barn door set shapes the light
  • Scrims diminish the intensity of the light
  • 25' Head-to-ballast cable
  • 800 Watts
Mole-Richardson : Picture 1 regular $8,849.95

About Mole-Richardson

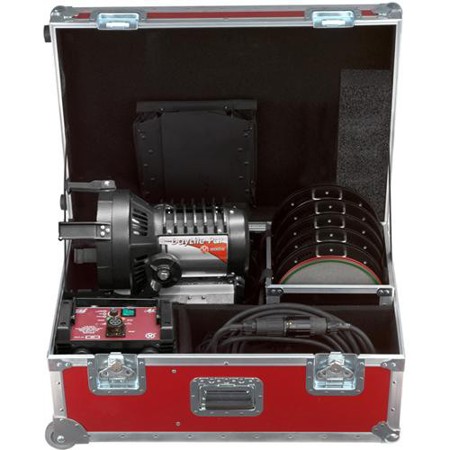

The Mole Richardson 800 Watt HMI DayLite Par Kit includes dimmable electronic ballast, 25' cable, barn doors, 4 lens set and scrims. A hard case is also included. The DayLite PAR is designed for cinema, TV and other media events where high output and daylight color balance are required to meet the challenge of ambient conditions.

Fabricated from solid cast aluminum, it benefits from improved ventilation and features a Brytal Aluminum parabolic reflector which boasts 95% reflectivity. The fixture has been fitted with a swing out door for quick access to safety and igniter switches.

Lamping is achieved via a hinged, locking front door which is fitted with a stainless safety screen that sits over the reflector. Tactile and visual focal indicators denote lamp position which can be tweaked when using the supplied lenses to optimize beam pattern.

When fitted with an 800 watt HMI bulb and no lens, this fixture will throw a beam of light of 6010 foot-candles 1.0' in diameter from a distance of 20'. Mounting one of the four included lenses will alter the beam spread and diminish the light output.

Mole-Richardson Features

  • Dimmable to 50% of full power.
  • Multi-Voltage - 90-260VAC, auto-sensing.
  • Microprocessor control, constant power output.
  • Four lenses - Narrow, Medium, Wide, Extra Wide, each helps to shape the light spread.
  • Barn door set shapes the light.
  • Scrims diminish the intensity of the light.
  • 25' Head-to-ballast cable.

Mole-Richardson Specifications

Light Fixture: Rating
800 Watts max
Light Fixture: Socket (Lampholder)
G22, Heavy duty electrical grade porcelain body with friction type bi-post brass inserts.
Light Fixture: Lens (Condenser)
4 accessory lenses included
Light Fixture: Mounting
5/8" (16 mm) standard stud
HMI Ballast: Rating
800 Watts, 90-260VAC
HMI Ballast: Cable
25', included
Light Fixture: 10.75x10.75x14.5" (27.3x27.3x36.8cm) without yoke
10.75x10.75x19.25" (27.3x27.3x49cm) with yoke
HMI Ballast: 5x9x8.5" (12.7x23x21.6cm)
Light Fixture: 13 lbs (5.9 kg) with cable
HMI Ballast: 13 lbs (5.9 kg)
Kit: 65 lbs (29.5 kg)
Mfr #
