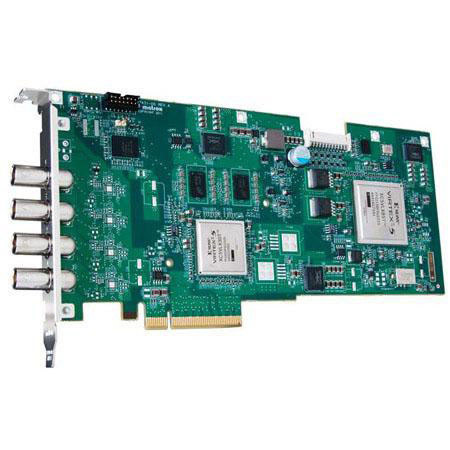

Matrox VS4 Quad HD-SDI Capture Card for Telestream Wirecast

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,475.00 $59 per week
Free Expedited Shipping
Add to Wishlist In Stock

About the Matrox VS4

Create video streaming productions that are visually striking and grab your audience's attention. The combination of Matrox VS4 and Telestream Wirecast for Windows lets you switch or mix multiple live video feeds and pre-recorded clips while adding graphics and effects. This solution is ideal for internet broadcasts of sports, religious services, corporate meetings and other live events. Finally, online video streaming with the production values of live television broadcasts!

Matrox VS4 Features

  • Capture up to four HD video streams: In a single PCIe slot, Matrox VS4 provides up to four independent HD inputs with up to 8 embedded audio channels per source, taking up an absolute minimum of the precious real estate in your PC
  • Easy-to-use ISO recording: The easy-to-use Matrox ISO camera recording tool lets you record using the high-quality Matrox MPEG 2 I-Frame codec at up to 300Mb/s in HD. You can then use Adobe Premiere Pro to natively edit your material
  • Effortless onsite set-up: Just hook up your cameras, start Wirecast and stream. Matrox VS4 automatically detects the presence, resolution and frame rate of all your inputs so you don't have to manually set up each source in Wirecast
  • Expandable technology: Need more than four sources for your production? Simply add a second Matrox VS4 capture card to your system and you've increased your setup from 4 to 8 inputs
  • Extensive audio support: Matrox VS4 captures up to 8 channels of embedded audio on each input. Using Wirecast, you can choose any stereo pair for your streaming production while simultaneously recording all 8 channels to disk using the Matrox recording tool

Matrox VS4 Specifications

Supported video formats NTSC/PAL
720P 50/59.94
1080I 50/59.94
1080P 23.98/24/25/29.97/30
1080PsF 23.98/24/25/29.97/30
SDI input 4 SD or HD input
8 channels of embedded audio
Compliant with SMPTE 259M, SMPTE 272M,SMPTE 292M, SMPTE 299M
BNC connector (75 Ohms), terminated
Equalized input for maximum cable length support
SDI audio input 8 channels of embedded audio
24-bit, 48 kHz
Streaming Telestream Wirecast Studio and Wirecast Pro
Recording Direct Capture Integration with Telestream Wirecast software
Power Total power consumption: 23.0 watts
Operating temperature 0 to 55deg. C (32 to 131deg. F)
Storage temperature -40 to 75deg. C (-40 to 167deg. F)
Maximum altitude for operation 3,000 meters
Maximum altitude for transport 12,000 meters
Operating humidity 20 to 80% relative humidity (non-condensing)
Storage humidity 5 to 95% relative humidity (non-condensing)
Platform Supported Windows
Dimensions (LxW) 23.2x10.7 cm / 9.125x4.2"
Overall thickness including components 1.9 cm (0.75")
