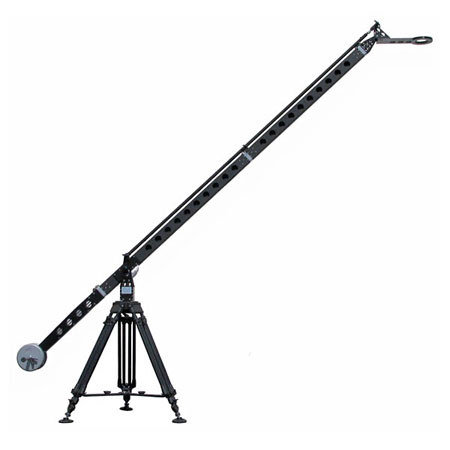

Matthews 377704 Intel-A-Jib Pro
The Matthews Intel-A-Jib is a unique modular jib arm system manufactured using the latest techniques, processes and equipment, resulting in superior quality. Among the many features that differentiate the Intel-A-Jib from the competition is the one-piece X-Box Extrusion modular beam. This design element offers superior anti-deflection and anti-distortion of the arm. The Intel-A-Jib sets up in less than two minutes without any tools due to the innovative V-Lock component connector system.
With extensions of either 10 or 6 feet in length, the Intel-A-Jib can accept virtually any camera package, expanding great image making creativity. The Intel-A-Jib uses the internationally accepted Mitchell Mounting System to interface with the supporting tripod system and for camera mounting. Mounting the Intel-A-Jib to Matthews MT-1 Heavy-Duty Tripod and the DL-7 Dolly allows the operator to quickly and easily position the fixture, thereby ensuring many more opportunities to capture that 'perfect' shot.
|Min. Reach||6 Ft. / 1.83 Meters (From center of fulcrum pivot point, to center of 7" Mitchell mount)|
|Max Reach||10 Ft. / 3.10 Meters (From center of fulcrum pivot point, to center of 7" Mitchell mount)|
|Max Camera Load Capacity||120 lbs. at 6' (54.43 Kg at 1.83 m)
80 lbs. at 10' (36.29 Kg at 3.10 m)
|Overall Assembled Length||9' 7" at 6' (2.96 m at 1.83 m)
13' 8" at 10'(4.21 m at 3.10 m)
|Counterbalance weight to Load Ratio||1.8:1 at 6' (1.83 m)
3.0:1 at 10' (3.10 m)
|Camera Mount Options||Over/Under 7" Mitchell (flat-base)|
|Intel-A-Jib Mounting Requirements||Dolly, tripod, or other, with 7" Mitchell mount|
|Weight at Full Extension||65 lbs. at 10' (28.48 Kg. at 3.10 m)|
