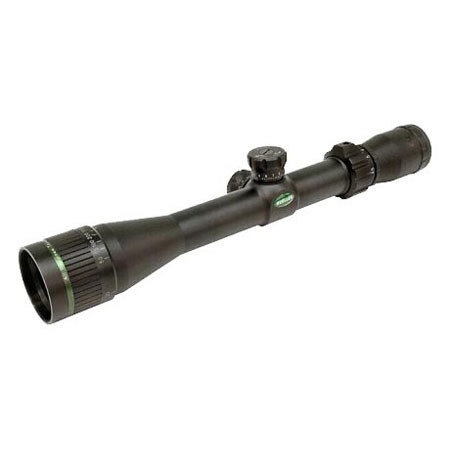

Mueller Optics 4.5-14x40mm APT All Purpose Tactical Series Rifle Scope, Matte Black Finish with Mil Dot Reticle, Adjustable Objective & 30mm Tube
• The new Mueller APT offers the same wide angle field of view and eye relief as the APV, but in a tactical version. The APT has fully exposed target turrets with ¼" windage and elevation adjustment, a 30mm tube for more internal adjustment range and a fast focus eye piece. The magnification ring is also highlighted green on 10×, which indicates the setting for accurate Mil Dot measurements.
• The APT is a great "All- Purpose Tactical" scope but can also be used by the hunter to accurately compensate for windage and bullet drop at longer ranges.
|Magnification||4.5x - 14x|
|Objective / Field of View||40mm / 27.0' (8.2m) @ 4.5x at 100 yds.(100m), 9.0' (2.7m) @ 14x at 100 yds.(100m)|
|Main (Center) Tube Diameter||30mm|
|Objective Tube Diameter||2.07"|
|Eyepiece Tube Diameter||1.75"|
|Lens Coatings||Fully Multi-Coated|
|Reticle Image Plane (Magnifying)||Second|
|Twilight Performance||Not Specified by Manufacturer|
|Exterior Finish||Matte Black|
|Windage & Elevation Adjustments (MOA)||1/4" Windage & Elevation|
|Maximum Adjustment||96" @ 100 Yards Windage / 96" @ 100 Yards Elevation|
|Exit Pupil||8.8mm @ 4.5x, 2.8mm @ 14x|
|Eye Relief||3.25" @ 4.5x, 3.25" @ 14x|
|Parallax Correction Control||Adjustable Objective|
|Diopter Adjustment||Not Specified by Manufacturer|
|Waterproof / Fogproof||Yes|
|Weight||23.0 oz., 652.04g|
|Special Features||Reticle Image in the Second Focal Plane
30mm Tube Construction
Fully Exposed Target Turrets.
