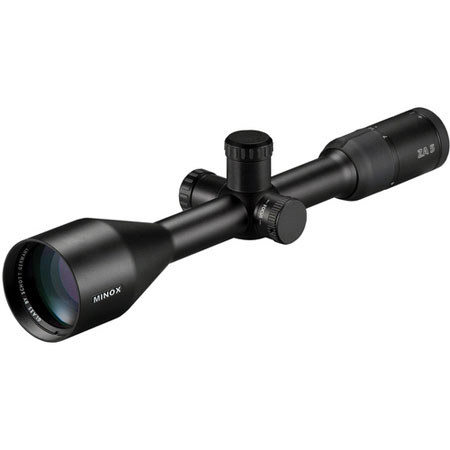

Minox 66010 2 - 10x40mm ZA 5 Riflescope, Matte Black
Minox

Minox 2-10x40mm ZA 5 Series Riflescope, Matte Black Finish with MinoPlex Reticle.

SKU: MX66010 MFR: 66010
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$479.00
Free Shipping (USA)
Qty:

Add to Wishlist

What's Included With This Item

  • Scopecoat Cover.

Key Features

  • Advanced German engineering and design
  • Assembled in the USA
  • Up to 5x magnification zoom ranges
  • Rugged aero-space grade aluminum 1" mono-tube construction
  • Hard anodized black matte non-glare finish
  • Legendary German SCHOTT optical glass
  • Fully, multi-coated lens elements, up to 21 layers
  • Argon gas purged for water and fog-proof performance in any environment
  • Large, finger adjustable windage & elevation controls
  • Precise predictable/repeatable reticle movements
    @@ 1/4 MOA adjustment ZA 3 and ZA 5 2 - 10 x 50 & 3 - 15 x 42 Scopes
    @@ 1/8 MOA adjustment ZA 5 4 - 20 x 50 only
  • Safe and versatile long four inch + eye relief
  • Rubber cushioned fast-focus eyepiece
  • Positive soft-touch enhanced variable power ring
  • All models available with PLEX or MINOX BDC reticles
  • All models packed with the added protection of a Scopecoat cover

Technical Specs

Magnification 2x - 10x
Objective / Field of View 40mm / 47.5' (14.5m) @ 2x at 100 yds.(100m), 9.4' (2.9m) @ 10x at 100 yds.(100m)
Main (Center) Tube Diameter 1.0"
Objective Tube Diameter 1-7/8"
Eyepiece Tube Diameter 1-9/16"
Lens Coatings Fully Multi Coated Optics, up to 21 Layers
Reticle MinoPlex
Reticle Image Plane (Magnifying) Not Specified by Manufacturer
Exterior Finish Matte Black
Windage & Elevation Adjustments (MOA) 1/4" Per Click
Maximum Adjustment 72 MOA W & E
Exit Pupil 20.0mm @ 2x, 4.0mm @ 10x
Eye Relief 4.0" / 101.6mm @ 2x, 4.0" / 101.6mm @ 10x
Parallax Correction Control 100 Yards
Diopter Adjustment -2 / +1.5
Material Aluminum Alloy
Nitrogen Filled Argon Gas Purged
Waterproof / Fogproof Yes
Length 12-3/16", (309.5mm)
Mounting Length 5-9/16"
Weight 12.0 oz., 340.2g
Special Features Long Eye Relief
Assembled in the USA.
Large, Finger Adjustable Windage & Elevation Controls
All Models Packed with the Added Protection of a Scopecoat Cover
