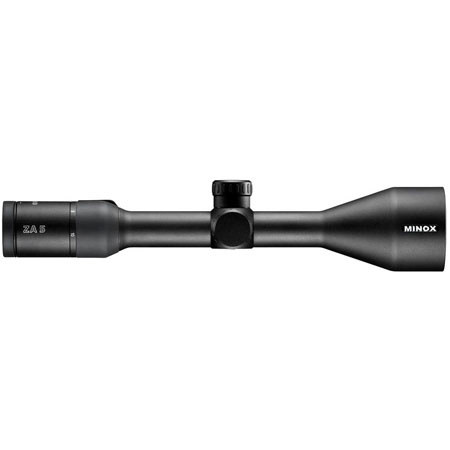

Minox 66520 3 - 15 x 50mm ZA 5 SF Riflescope, MinoPlex
Minox

Minox 3-15x50mm ZA 5 Series SF Riflescope, Matte Black Finish with MinoPlex Reticle & Side Parallax Adjust.

SKU: MX66520 MFR: 66520
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$569.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

Minox ZA 5 3-15x50 SF Riflescope (66520) offer a lens system that delivers target-popping contrast and "can't hide" brightness dawn or dusk, rain or shine, ensuring accurate shot placement no matter how challenging the conditions. The ZA5 3x-15x 50mm Side Focus Riflescope provides the highest quality and traditional German Engineering Values. This riflescopes maintain values such as quality, precision and ruggedness in sport optics development and manufacturing which reflects the Minox philosophy. It feature lens from legendary German glass specialist SCHOTT, who have been developing and manufacturing special glass for more than 125 years.

Key Features

  • Side Focus Parallax Adjustment
  • Lens by legendary German glass specialist SCHOTT AG
  • Minox M coating - up to 21 different layers applied to the glass surface to greatly improve light transmission, brightness, contrast, detail and color rendering
  • Windage and elevation knobs, finger adjustable, with positive & precise reticle movements of 1/4 MOA, zero resettable
  • Long four inch plus eye relief
  • Rubber cushioned fast-focus eyepiece
  • Smooth operating soft-touch rubber variable power ring

Technical Specs

Clear aperture 1.97" / 50.04mm
Parallax adjustment - Range (Side focus) 25 yds-infinity
Fully Multicoated Yes
Eye relief > 4.0" / 101.6mm
Exit pupil high power 0.13" / 3.30mm
Exit pupil low power 0.66" / 16.76mm
Eyepiece - diopter -2 min
Eyepiece + diopter 1.5 min
Magnification high power 15mm / 0.59"
Magnification low power 3mm / 0.19"
Field of View Low Power / ft@100 yds 31.5
Field of View High Power / ft@100 yds 6.3
Click values 1/4 min
Windage travel - total 50 min
Min travel one direction 25 min
Elevation travel - total 50 min
Main tube Outside diameter 1" / 25.4mm
Overall length 12.4" / 314.96mm
Front mounting distance 1.97" / 50.04mm
Rear mounting distance 2 .17" / 55.12mm
Reticle MinoPlex
Weight 13.8 oz / 0.39kg
