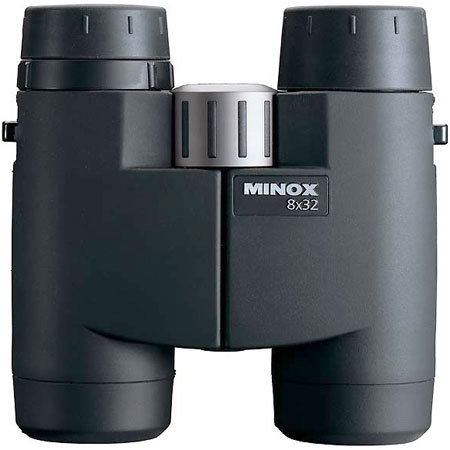

Minox BD 8x32 BR ALT, Water Proof Roof Prism Binocular with 7.6 Degree Angle of View, U.S.A.
Mfr. Part: 62122 SKU: MX832
enlarge image
|
|
 |
|
|
|
Item Includes
Description
They impressively combine the classic MINOX values of outstanding optical performance and precision-engineering in a compact design: The MINOX BD 8x32 BR, BD 8.5x42 BR and BD 10x42 BR binoculars. Numerous functional innovations make them ideal in all manner of activities - from bird-watching to wildlife viewing to following sporting events.
The internal nitrogen filling which prevents fogging of the lenses and the total water resistance of the rubber reinforced aluminium body ensure unrestricted use of these high-quality optical devices.
The costly lens system with additional lens for dust-free internal focusing, and the phase-corrected ridge prisms with their silver-coated ridge surfaces, make the compact construction of these high-performance binoculars possible.
The uniquely high light transmission, the convincing color accuracy and brilliance of the reproduction and the sharpness of the contrast, even down to details, are out-standing application. This is made possible by the multi-layer M* coating, which is proven worldwide, and is applied to all transparent lenses and prism surfaces.
The eyepieces for wearers of spectacles, with 4 lenses in 3 groups, are calculated to give the user of MINOX binoculars the greatest possible use and offer an extremely wide field of vision, for example 131 m for the D 8x32 BR to 1000 m. Combined with the ly devel-oped, continuously movable eyepiece cups, they can immediately be used by eyeglass wearers. |
Features
 |
Advanced optical system employing three lenses for a light and high contrast view |
|
Coating system for all prisms increases contrast even at twilight and dawn |
|
Rubber reinforced aluminum body for long life and mechanical stability |
|
Ergonomic design with central focussing wheel |
|
Dust-free and waterproof up to 16.4 ft. |
|
Extended eye relief allows a full field of view even for wearers of eye glasses |
|
Easily adjustable eyepiece cups, an additional comfort with glasses |
|
Internal nitrogen filling to prevent lens fogging |
Specifications
| Type of Prism | Phase Coated Roof prism |
| Coating | Multi-layer M* coating |
| Real Angular Field of View | 7.6 ° |
| Field of View at 1000 Yards | 399 Feet |
| Exit Pupil | 4 mm |
| Eye Relief | 15 mm |
| Relative Brightness | 16 |
| Twilight Factor | 16 |
| Close Focus Distance (ft) | 5.3 feet |
| Rubber Coated (Armored) | Yes |
| Waterproof / Fogproof | Waterproo up to 5m depth, and fog proof |
| Camera Tripod Adaptable | Yes |
| Dimensions | 4.9 x 4.3 x 2.4" (125 x 108 x 61mm) W x H x D |
| Weight | 1.37 lb (620 g) |
| | |
|
|
|
|
|
|
|
|
|
|
