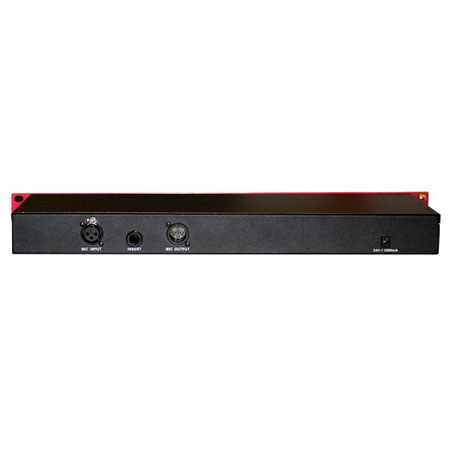

MXL MPAC-01 Microphone Preamp/Compressor, 48V Phantom Power, 50Hz to 175Hz High-Pass Filter

MXL
SKU: MXLMPAC01 MFR: MPAC-01
MXL MPAC-01: Picture 1 thumbnail MXL MPAC-01: Picture 2 thumbnail

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $24.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $84.95
28% Off

Our Price

$499.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About MXL MPAC-01

The MPAC-01 from MXL is a single channel microphone with a built in compressor. The unit utilizes THAT Corporation 1512 opamps which are known for their exceptional low noise performance and low THD + N through the full audio bandwidth. The preamp can supply +48V phantom power for use with condenser microphones.

The preamp possesses a clean and transparent tonality so it won't color your sound. The VCA compressor is fully controllable and allows you to manipulate your dynamics with precision. A 20dB pad and a reverse polarity switch enhance the usefulness of the unit, while an analog meter displays output or gain reduction. A variable high-pass filter rounds out the comprehensive functionality of the preamp.

MXL MPAC-01 Features

  • Single channel microphone preamp with compressor
  • Balanced input/output and an unbalanced insert jack
  • Built-in VCA compressor
  • Switchable +48V phantom power
  • Variable frequency high-pass filter (50Hz to 175Hz)
  • 20dB pad and phase reverse switches
  • Analog meter displays output and gain reduction
  • Low noise operation

MXL MPAC-01 Specifications

Number of Channels
Single
Inputs
1 x XLR
1 x 1/4" TRS phone Insert
Output
1 x XLR
Phantom Power
+48VDC
Multi Function
Compressor
Gain Range
60dB
Maximum Output Level
20dB
Frequency Response
20Hz to 20kHz
Compression Threshold
20dB to +20dB
Compression Ratio
1:1, 2:1, 3:1, 4:1, 5:1, 9:1, infinity:1
Slope
Hard/soft (switchable)
Make-up Gain
-10dB to +10dB
Power Requirements
24V, 1000mA via included external adapter
Input impedance
15K ohms
HPF Switch
Variable from 50Hz to 175Hz
