| Camera Type |
Medium Format SLR (Single Lens Reflex) Camera. |
| Format |
6x7cm, 6x4.5cm, 6x7cm, 7.2x7.2cm (Quadra Back), Digital Backs. |
| Lens Mount |

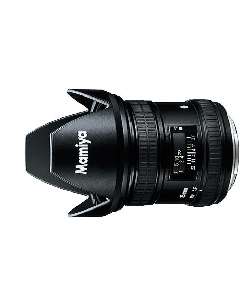

Breech-lock Bayonet Gold Plated Electronic Interface Pins Lenses System of 19 interchangeable Leaf Shutter Lenses |
| Viewfinder |
Folding Waist Level with Flip-up Magnifier(Standard) Optional AE Matrix Prism Finder Optional Non-metering Prism Finder Field of View 95% with Automatic Masking for Vertical and Horizontal Revolving Back Position |
| Focus Type |
Rack and Pinion Bellows Focusing Dual Control Rapid/Microfine Focus Knobs Focus Lock 46mm Built-in Bellows Extension Optional Extension Tubes Focusing Scale Exposure Compensation Scale |
| Focus Screen |
Standard Type A Matte, Seven Additional Interchangeable Screens |
| Shutter /Release |
Electronically Timed Speeds 8 Seconds to 1/400 Second 1/400 Second Mechanical Override B and T Setting Mirror-up Operation RBL Setting Accepts RB Series Lenses AEF Setting Accepts AE Finder Shutter Release Electromagnetic Release Accepts Standard Mechanical Cable Release, Electronic Release Cable or Infra-red Remote Control |
| Film Transport |
Single Action 114° Stroke Optional Motor Winder |
| Camera Back |
Revolving Back Auto-indexing Film Speed Dial Dark Slide Pocket Dark Slide Safety Interlock |
| Multiple Exposure |
Single Action Multi Switch |
| Power Source |
One 6V Silver Oxide or 6V Alkaline PX28, 4SR44 or 4LR44. Do Not Use Lithium Batteries. Mechanical 1/400 Second Speed Operates without Battery Power |
| Dimensions |
108 x 133.4 x 212.5 mm (4.25" x 5.2" x 8.4") |
| Weight |
2490g (5.5 lbs.) with 110mm f/2.8 W Standard Lens and 120 Film Magazine |
| Special Features |
Audible Warning Signals: Incompatible Shutter Dial Setting Low Battery Level Lens Shutter Servicing Required Fully compatible with digital backs. |
