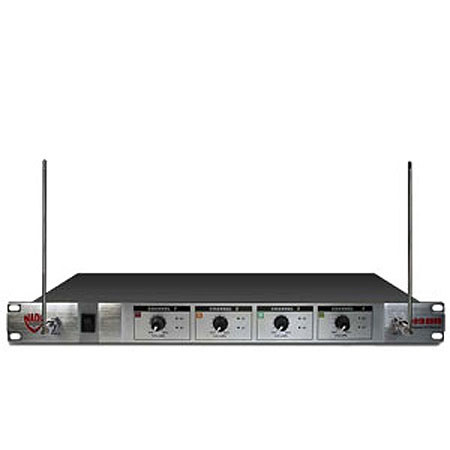

Nady 401X Quad LT Bodypack System with Unidirectional Condenser

Nady
SKU: NA401XQLTU MFR: 401XQUADLTU
Free Shipping

See all shipping options

In Stock Online - Usually ships within 2-4 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $24.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $84.95

Our Price

$339.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Nady 401X Lavalier

Designed for all professional applications, the 401X Quad offers unsurpassed RF and audio, enhanced full-featured operation and rackmount convenience. With four independent VHF receivers in one convenient, rugged, all-metal single rack space housing makes operating 4 wireless systems at the same time easier than ever.

The rear panel has individual XLR Output jacks, volume and RF mute controls for each of the 4 channels and 4-Channels-Mixed AF Out 1/4" phone jack. The high performance 401X Quad provides unmatched transparent audio with 120 dB dynamic range and up to 250+ feet optimum line-of-sight operation. With a choice of WLT, WGT, WHT, or Link 2 transmitter, any 4 can be operated simultaneously on the 4 different channels.

Nady 401X Lavalier Features

  • Four independent VHF receivers in one convenient, rugged, all-metal single rack space housing - makes operating 4 wireless systems at the same time easier than ever
  • Front-mount dual antenna jacks for either onboard or remote antennas
  • Front panel Power ON/OFF switch, plus Power ON LED, TX ON and AF signal level LED displays
  • Rear panel individual XLR AF Output jacks, volume and RF mute controls for each of the 4-channels and 4-Channels-Mixed AF Out 1/4? phone jack
  • Noise-free transmitter ON/OFF operation
  • High performance - unmatched transparent audio with 120 dB dynamic range and up to 250+ feet optimum line-of-sight operation
  • Features the Nady DM-10D unidirectional neodymium dynamic cartridge for optimum true sound, maximum feedback, rejection and minimal handling noise
  • OFF/STANDBY/ON switch allows convenient audio muting with the transmitter "ON"
  • Low battery LED indicator flashes once for unit "ON"; lights steady for low battery alert
  • Rubber, "easy-mount" mic clip included
  • Choice of instrument or headworn/lavalier microphone bodypack transmitter
  • OFF/STANDBY/ON switch allows convenient audio muting with the transmitter"ON"
  • Low battery LED indicator flashes once for unit "ON"; lights steady for low battery alert
  • Locking 3.5mm mini-jack provides secure connection for removable microphone instrument cable
  • Easily accessible input level adjust control for optimum sound
  • Plug-in transmitter converts your favorite XLR handheld or lavalier microphone to wireless instantly
  • Rugged construction and positive locking connector for reliable performance
  • Selectable phantom power
  • Optional leatherette pouch with clip available for use as bodypack

Nady 401X Lavalier Specifications

Frequency Response (Overall)
30-18KHz (-3dB)
Dynamic Range (Overall)
120dB (20-20KHz)
Total Harmonic Distortion (Overall)
<0.5% (typical)
RF Carrier Frequency Range (Overall)
170-230MHz (Factory installed Channels)
Frequency Stability (Overall)
+/- 0.005%, crystal controlled
Modulation (Overall)
FM (F3E), +/-15KHz nor,+/-30KHz max
Operating Range (Overall)
250 feet typical - up to 500+ feet optimum line-of-sight
Audio Inputs - WHT (Transmitters)
Nady DM-10D neodymium dynamic cartridge
Audio Inputs - WLT/WGT (Transmitters)
3.5mm mono locking jack for connecting to omni or unidirectional lavalier mic or unidirectional headworn mic, with phantom power (WLT); or connecting to instrument cable (WGT)
Audio Inputs - LINK 2 (Transmitters)
Locking XLR jack for connecting to microphone or cable, with selectable phantom power
Controls - WHT (Transmitters)
OFF/STANDBY/ON switch
Controls - WLT/WGT (Transmitters)
OFF/STANDBY/ON switch, input level adjust
Controls - LINK 2 (Transmitters)
OFF/STANDBY/ON, LO/HI Level and ON/OFF Phantom power switch
LED Indicator (Transmitters)
Unit "ON" (single flash), Low Battery Alert (steady)
RF Power Out (Transmitters)
50mW (Max. allowed by FCC)
Harmonic/Spurious Emissions-Transmitters
<-40dB
Battery (Transmitters)
9V Alkaline
Battery Life (Transmitters)
Up to 20 hours
Controls (Receiver)
Power ON/OFF, volume control, mute control
Connectors (Receiver)
1 unbalanced adjustable mixed (all four channel)
1/4" T-S audio output jack. Line level, 600 ohms.
4 balanced fixed level XLR. #1=GND, #2-3=signals
Line/Mic level, 11k/600 ohms
Receiver
2.1 mm barrel-type DC input jack (tip=positive)
LED Indicators (Receiver)
1 Power ON LED, 4 AF LED, 4 TX ON LED
Power Requirements (Receiver)
16V @ 800mA, nominal, AC/DC adapter supplied
Antenna Connectors (Receiver)
Dual female BNC connectors
Dimension - WHT (Transmitter)
9.5" X 1.4" Diam. (24.1 X 3.5 cm)
Dimension - WLT/WGT (Transmitter)
4.1" X 2.4"X 0.8" (10.4 X 6.1 X 2.0 cm)
Dimension - LINK 2 (Transmitter)
4.5" X 1.5" X 1.25" (11.4 X 3.8 X 3.2 cm)
Dimensions (Receiver)
1.75" x 7.5" x 16.5" (4.4 x 19 x 42 cm)
Weight - WHT w/o battery (Transmitter)
6.9 oz (193 g)
Weight WLT/WGT w/o battery (Transmitter)
3.6 oz (101 g)
Weight -LINK 2 w/o battery (Transmitter)
2.6 oz (71 g)
Weight (Receiver)
4.5 lbs (2 Kg)
Warranty
Nady 1 year warranty
