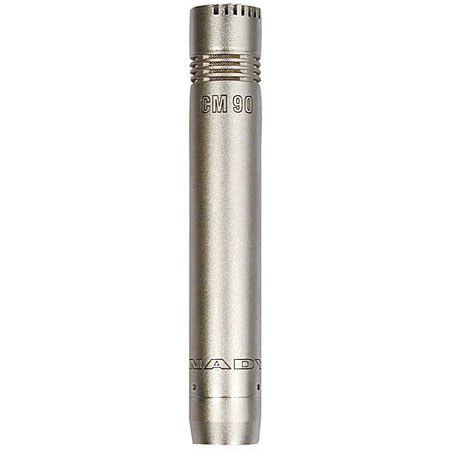

Nady CM-90 Small Diaphragm (20mm), Wired Instrument Condenser Microphone
Mfr. Part: CM 90 SKU: NACM90
enlarge image
|
|
|
|
|
|
Description
The DM Series Drum/Percussion/Instrument Dynamic Microphones are equipped to handle extremely high sound pressure levels without distortion. The DM Series microphones are ideal for live and studio closemiking of all types of drums and percussion instruments, and also for accurate sonic reproduction of brass, woodwind and other instruments producing high sound fields.
The CM-90 is a Classic small diaphragm (20mm) condenser mic. Perfect for recording and stage reinforcement of acoustic guitar, drum overheads, hi-hats, snares, piano, and horns.
· High sensitivity, extended smooth, full frequency response and very high SPL capability
· Transformerless design for minimal self-noise and increased dynamic range
· Rugged, turned-brass housing internal sub-assembly shockmount, and engraved markings
· Requires 48V phantom power
Specifications:
Type: True condenser pressure-gradient microphone with 0.79 inch(20mm) diaphragm and FET Polar pattern:
Cardioid Open circuit sensitiity: 14mV/Pa=-37dBV (0dBV=1V/Pa)
Frequency range: 40 to 16000Hz
Rated output impedance: < 200 Ohms
Recommend load Impedance: -1000 Ohms
Max. SPL (1% THD @1000Hz): 131dB
Equivalent noise level to DIN 45405(CCIR 468-2): 28DB Max.
SPL (1% THD @1000Hz): 131dB
Power requirement: +48VDC phantom power
Equivalent noise level to DIN 45405(CCIR 468-2): 28DB
IEC 268-4(A weighted): 19dB-A
S/N ratio re 1Pa: 75dB
Current consumption: <3mA
Ambient temperature range: 14°F to 140°F (-10°C to +60°C)
Relative humidity range: 90% (68°F, 20°C), 85% (140°F, 60°C)
Connector: 3-pin XLR (gold plated)
Phasing: Positive voltage on pin 2 relative to pin 3
Mic cable: 3-pin XLR standard cable (not supplied)
Size: Diameter: 0.9" (22mm), Length: 5.1" (130mm)
Net weight: 5oz (130g)
|
Features
 |
Cardioid pattern allows close miking without bleedthrough from other drum kit pieces |
|
Neodymium element delivers maximum output |
|
Up to 145dB SPL handling capacity for distortion-free reproduction of even the loudest drums and other instruments |
|
Transformerless moving-coil dynamic design for enhanced bass and fast transient response |
|
All metal construction for maximum reliability |
|
Special rubber shockmount mic holder minimizes floor vibration pick-up |
|
Incredibly small, low-profile design for minimum visibility and versatile close-miking placement around the drum kit |
|
Gold-plated XLR for maximum conductivity |
|
Full frequency response for sonic punch with exceptional clarity: 70-16,000Hz (DM 70); 30-15,000Hz (DM 80) |
|
|
|
|
|
|
|
|
|
|
|
