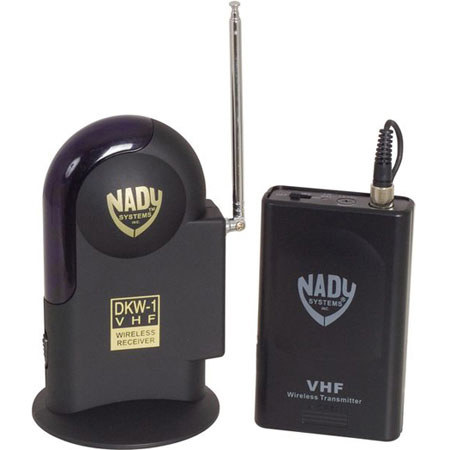

DKW-1 Non Diversity Receiver - AC-DKW-1 Power Supply - 6' Connecting Cord - 9 Volt Battery - WLT-14 Bodyback Transmitter - HM-1 Headworn Cardioid Polar Pattern Dynamic Mic - PCC-DKW-1 Plastic Carry Case
|
DKW Series...Redefining the price/performance boundaries of professional wireless
With a choice of two models, the Nady DKW Series are the perfect entry level professional wireless. Delivering clear, transparent, high-fidelity audio, the DKW Series systems can be used for a broad range of singing and speaking applications, karaoke and recreational singers, DJ's, auctioneers, teachers, aerobic instructors, clergy, and a host of others. Although offered at a breakthrough new low price for a professional wireless, the DKW Series are loaded with features:
· High-band VHF (170-216 MHz) operation for interference-free performance
· Advanced companding circuitry for a wide dynamic range (no overloading for loud inputs or background hiss during quiet use)
· Full frequency response from 40 -20,000 Hz
· 250 ft. typical operating range up to 500+ feet line-of-sight · Choice of 2 transmitters:
· WHT-14 handheld mic with a powerful neodymium cartridge that delivers unsurpassed audio quality, low handling noise and enhanced feedback rejection.
· WLT-14 bodypack for lavalier or headworn mic
· Choice of 2 receivers:
** DKW-1 mini portable receiver with unique space-saving, vertical design and power ON/OFF switch, 1/4" audio output jack, and easily visible extra-jumbo LED indicators for power on, transmitter on and audio peak.
· DKW-2 ultra portable receiver with enhanced features, including front panel power ON/OFF switch , 5 segment LED Audio Display, LED indicators for power on and received signal, and volume control; and rear panel mute (RF squelch) adjust control and audio output jack.
· Special added circuitry in both receivers eliminates transmitter on/off pop" noise
|
| Overall System Frequency Response | 40-20,000 Hz, +/-3dB |
| Dynamic Range | 100dB |
| Harmonic Distortion | <0.65% |
| RF Carrier Frequency | 170-216 MHz |
| Frequency Stability | +/- 0.005%, crystal controlled |
| Modulation | FM (F3E), +/-20KHz max. |
| Operating Range | 250 ft. typical up to 500+ ft. line-of-sight |
| Transmitters: Audio Inputs | WHT-14: Nady DM-10D neodymium cartridge
WLT-14:3.5mm mono locking jack for connecting to omni or uni-directional lavalier mic or uni-directional headworn mic, with phantom power |
| Controls | WHT-14 OFF/STANDBY/ON
switch WLT-14 OFF/STANDBY/ON switch, input level adjust |
| LED Indicator | Unit ON (single flash), Low Battery Alert (steady) |
| RF Power Out | 50mW (Max. allowed by FCC) |
| Harmonic & Spurious Emissions | >-40dB |
| Battery | 9V Alkaline |
| Battery Life | Up to 15 Hours |
| Dimensions |
WHT-14: 9.5" X 1.4" Dia. (24.1cm X 3.5 cm)
WLT-14: 4.1" X 2.4" X 0.8" (10.4cm X 6.1cm X2.0cm) |
| Weight (w/o battery) |
WHT-14: 6.9 oz. (193 g.)
WLT-14: 3.6 oz. (101 g.) |
| Receivers Controls: |
DKW-1: Power ON/OFF
DKW-2: Power ON/OFF, Volume, Mute Adjust
Connectors:
1/4 unbalanced audio out jack
2.1mm barrel-type DC input jack |
| LED Indicator | DKW-1: Power ON, Transmitter RF, Audio Peak DKW-2: Power ON, Transmitter RF, 5 segment Audio display |
| Dimensions (Max.) | DKW-1: 5.2 X 3.0 1.7, 3.3 Dia. Base (13.2 X 7.6 X 4.3 cm, 8.4cm.)
DKW-2: 5.75 X 3.75 X 1.25 (147 X 96 X32mm) |
| Weight | DKW-1: 5.9 oz. (165 g.) DKW-2: 7.6 oz. (215.5 g.) |
| Power Requirements | DKW-1: 12V @ 70mA, nominal, AC/DC adapter supplied
DKW-2: 12V @ 200mA, nominal , AC/DC adapter supplied
Antenna: Single 12.1 (31 cm), collapsible |
| | |
|
