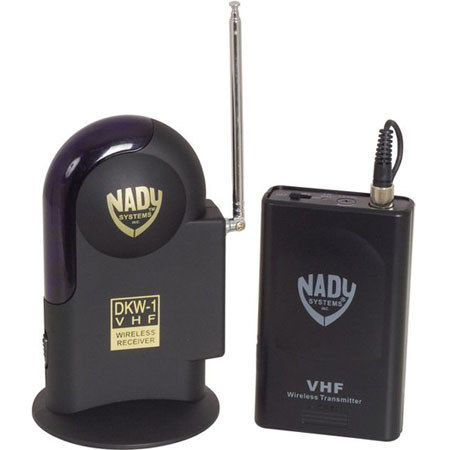

Nady DKW-1-LT/O VHF Lavalier Omni Wireless System with DKW-1 Receiver, WLT-14 Transmitter & Lavalier Omni Mic
Mfr. Part: DKW1LTO SKU: NADKW1LTO
enlarge image
|
|
 |
This item is currently out of stock and on backorder.
Please note: You can order this now and have us ship it as soon as it arrives.
We will not charge your card for any backordered items, until it is ready to actually ship. |
|
|
Item Includes
DKW-1 Non Diversity Receiver - AC-DKW-1 Power Supply - 6' Connecting Cord - 9 Volt Battery - WLT-14 Bodypack Transmitter with Lavalier Omni Directional Condenser Mic - PCC-DKW-1 Plastic Carry Case
|
Description
DKW Series...Redefining the price/performance boundaries of professional wireless
With a choice of two models, the Nady DKW Series are the perfect entry level professional wireless. Delivering clear, transparent, high-fidelity audio, the DKW Series systems can be used for a broad range of singing and speaking applications, karaoke and recreational singers, DJ's, auctioneers, teachers, aerobic instructors, clergy, and a host of others. Although offered at a breakthrough new low price for a professional wireless, the DKW Series are loaded with features:
· High-band VHF (170-216 MHz) operation for interference-free performance
· Advanced companding circuitry for a wide dynamic range (no overloading for loud inputs or background hiss during quiet use)
· Full frequency response from 40 -20,000 Hz
· 250 ft. typical operating range up to 500+ feet line-of-sight · Choice of 2 transmitters:
· WHT-14 handheld mic with a powerful neodymium cartridge that delivers unsurpassed audio quality, low handling noise and enhanced feedback rejection.
· WLT-14 bodypack for lavalier or headworn mic
· Choice of 2 receivers:
** DKW-1 mini portable receiver with unique space-saving, vertical design and power ON/OFF switch, 1/4" audio output jack, and easily visible extra-jumbo LED indicators for power on, transmitter on and audio peak.
· DKW-2 ultra portable receiver with enhanced features, including front panel power ON/OFF switch , 5 segment LED Audio Display, LED indicators for power on and received signal, and volume control; and rear panel mute (RF squelch) adjust control and audio output jack.
· Special added circuitry in both receivers eliminates transmitter on/off pop" noise
|
Specifications
| Overall System Frequency Response | 40-20,000 Hz, +/-3dB |
| Dynamic Range | 100dB |
| Harmonic Distortion | <0.65% |
| RF Carrier Frequency | 170-216 MHz |
| Frequency Stability | +/- 0.005%, crystal controlled |
| Modulation | FM (F3E), +/-20KHz max. |
| Operating Range | 250 ft. typical up to 500+ ft. line-of-sight |
| Transmitters: Audio Inputs | WHT-14: Nady DM-10D neodymium cartridge
WLT-14:3.5mm mono locking jack for connecting to omni or uni-directional lavalier mic or uni-directional headworn mic, with phantom power |
| Controls | WHT-14 OFF/STANDBY/ON
switch WLT-14 OFF/STANDBY/ON switch, input level adjust |
| LED Indicator | Unit ON (single flash), Low Battery Alert (steady) |
| RF Power Out | 50mW (Max. allowed by FCC) |
| Harmonic & Spurious Emissions | >-40dB |
| Battery | 9V Alkaline |
| Battery Life | Up to 15 Hours |
| Dimensions |
WHT-14: 9.5" X 1.4" Dia. (24.1cm X 3.5 cm)
WLT-14: 4.1" X 2.4" X 0.8" (10.4cm X 6.1cm X2.0cm) |
| Weight (w/o battery) |
WHT-14: 6.9 oz. (193 g.)
WLT-14: 3.6 oz. (101 g.) |
| Receivers Controls: |
DKW-1: Power ON/OFF
DKW-2: Power ON/OFF, Volume, Mute Adjust
Connectors:
1/4 unbalanced audio out jack
2.1mm barrel-type DC input jack |
| LED Indicator | DKW-1: Power ON, Transmitter RF, Audio Peak DKW-2: Power ON, Transmitter RF, 5 segment Audio display |
| Dimensions (Max.) | DKW-1: 5.2 X 3.0 1.7, 3.3 Dia. Base (13.2 X 7.6 X 4.3 cm, 8.4cm.)
DKW-2: 5.75 X 3.75 X 1.25 (147 X 96 X32mm) |
| Weight | DKW-1: 5.9 oz. (165 g.) DKW-2: 7.6 oz. (215.5 g.) |
| Power Requirements | DKW-1: 12V @ 70mA, nominal, AC/DC adapter supplied
DKW-2: 12V @ 200mA, nominal , AC/DC adapter supplied
Antenna: Single 12.1 (31 cm), collapsible |
| | |
|
|
|
|
|
|
|
|
|
