Nady MXE-1212 12-channel Stereo Mic/Line Mixer with Internal DSP Effects

Mfr. Part: MXE1212     SKU: NAMXE1212

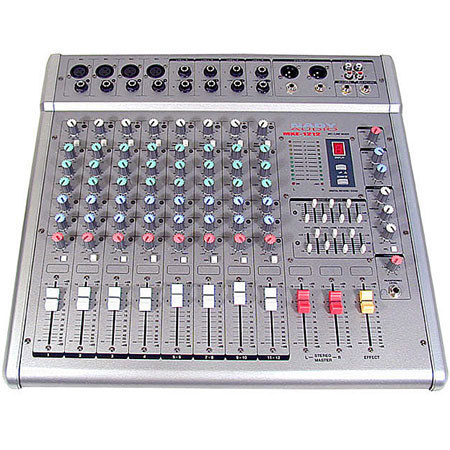

Nady MXE-1212 12-channel Stereo Mic/Line Mixer with Internal DSP Effects
enlarge image

Free Shipping view details

Product Rating Write a Review

Item Includes
Rack Ears

Description
The MXE Series Stereo Mic/Line Mixers Offer a choice of 3 compact, versatile console or rackmountable mixers with 16 built-in selectable DSP echo and reverb effects.

The MXE Series is ideal for any small venue live sound reinforcement applications where ultimate performance, advanced features, and affordability are needed.

With models ranging from 6 to 14 channels, the MXE mixers offer added enhanced operation, along with the increased channels, across the Series.

They all share some common features:
· Superb performance with low noise and smooth, transparent audio across the full audio spectrum and natural sounding selectable echo/reverb effects
· Built-in DSP (Digital Sound Processor) for ECHO (REVERB) with 16 selectable preset level and echo intervals and separate Effects Send and Master Effects Return controls, and numeric LED display
· Input Trim controls on all mono channel inputs
· Peak LEDs on all mono channels
· Pan pots on each mono channel and Balance pots on each stereo input
· 3 band EQ for all input channels
· Aux Send and Aux Return with Aux Send and Aux Return control
· Switchable global 48V phantom power on mono channels
· Super accurate 10-segment LED display bargraph meters
· High-quality sealed pots with center detents for all Pan/Balance and EQ controls
· Road-tough all steel construction. Rack ears supplied with MXE-1212, optional with MXE-612/812.

Features
MXE-1212 Mixer Features
12 channel stereo mic/line mixer w/ internal DSP effects
4 mono balanced XLR mic and unbalanced 1/4" line and 8 stereo unbalanced 1/4" inputs (12 total)
Balanced 1/4" TRS and XLR Stereo Outputs
3 band EQ for all input channels, 7 band stereo graphic EQ for Master Mix
4 balanced 1/4" TRS inserts allow independent connection of effects devices for each mono channel
60 mm faders on all channels and master L/R and Effect bus mix for precise levelcontrol
Switchable 20dB pad on all channel inputs
Tape level control for Tape In and Record Out
Separate Repeat control and separate effects PFL monitoring for built-in DSP (Digital Sound Processor)
Headphone output with separate volume adjust
PFL control for each channel allows headphone monitoring independent of channel volume
Erasable area above all faders for notations
Internal shielded AC supply with 115V(60Hz)/230V(50Hz) select switch

Specifications
Dimensions16"x17"x 3.5"
406cm x 432cm x 89 mm
Weight14.7 lbs / 6.7 Kg
