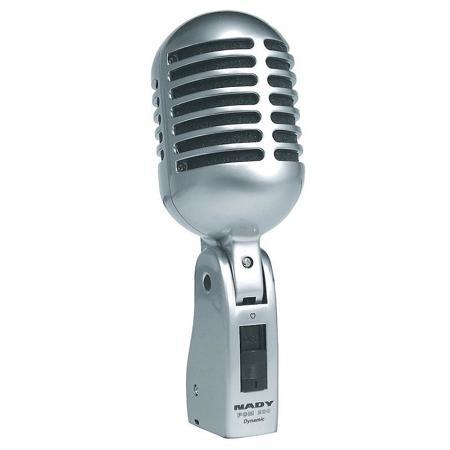

Nady PCM-200 Classic Style, Wired Dynamic Microphone with Vintage Retro-look Styling.
Mfr. Part: PCM200 SKU: NAPCM200
enlarge image
$79.95 Before $10.00 Savings
|
|
 |
|
|
|
Item Includes
PCM 200 Microphone - Users Guide - Warranty Card - Foam Padded Plastic Carrying Case
|
Description
This vintage retro-look styling microphone has advanced state-of-the-art acoustic design perfect for multi-purpose studio, recording, broadcasting, or live performance theater, concert applications.
The PCM-200 can be used with any standard mixer, powered mixer/amplifier, or mic preamp. Using either an XLR to XLR or XLR to 1/4" phone plug low impedance cable, connect the female XLR end to the PCM-200 and the other end male XLR or 1/4" phone plug, as appropriate) to your equipment.
The PCM-200 can be mounted on a microphone stand with the integral mic holder mount supplied. (Depending on the threading of the mic stand you are using, you may need to remove the threaded adapter from the mic holder.)
Although all microphones are prone to feedback to some extent, with a unidirectional polar pattern are specially designed to accept only signals from the audio source directly in front of the mic cartridge.
Thus, the cardioid pattern of the PCM-200 ensures that it will deliver only the desired audio in front of the mic, rejecting the unwanted audio from the rear, even in noisy ambient conditions with high sound pressure levels from the P.A. and monitor speakers. This means that feedback will be greatly minimized with the PCM-200 in all live performance miking applications.
|
Features
 |
High output dynamic cartridge for big powerful sound |
|
Cardioid pickup pattern to reduce feedback in live use |
|
Transparent tailored sound with presence peak for distinct lifelike vocals |
|
Pop-free locking on-off switch |
Specifications
| TYPE | Cartridge:
PCM-100: Black electret condenser
PCM-200: Dynamic |
| POLAR PATTERN | Unidirectional (cardioid) |
| SENSITIVITY | (0dB=1V/Pa @ 1kHz):
PCM-100: -36dB, ±2dB;
PCM-200: -54dB, ±3dB |
| IMPEDANCE | OUTPUT IMPEDANCE (@ 1kHz)
PCM-100: 100 Ohms, ±30%;
PCM-200: 250 Ohms, ±30%
LOAD IMPEDANCE: >1,000 Ohms |
| MAXIMUM S.P.L. (THD 1% 1KHz) | PCM-100: 127dB; PCM-200: 130dB INPUT |
| S/N RATIO RE 1PA | 72dB (PCM-100) |
| POWER REQUIREMENT | 48V DC Phantom power (PCM-100) |
| DIMENSIONS | 2.625" x 6.75" ( 66.7 mm x 171.5 mm) |
| WEIGHT | 1.4lb. (650g)
MATERIAL: Die-cast metal housing |
| | |
|
|
|
|
|
|
