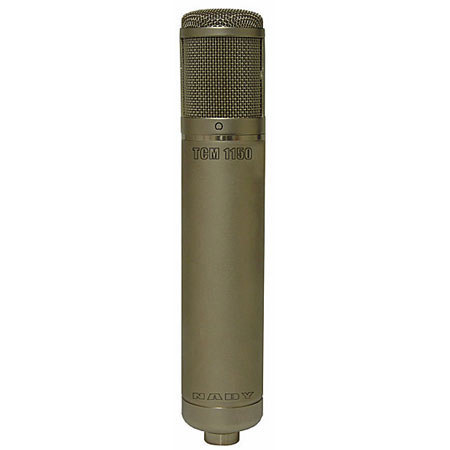

Nady TCM-1150 Studio Vacuum-Tube Condenser Microphone with 30' 7-pin XLR Cable & TMPS-2 Power Supply / Power Selector & Padded Case

Nady
SKU: NATCM1150 MFR: TCM1150
Free Shipping

See all shipping options

In Stock Online - Usually ships within 2-4 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $14.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $32.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $75.95

Our Price

$249.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Nady TCM-1150

The TCM 1150 is among the best value available today in studio tube condenser microphones with the classic vintage look and the same extraordinary sound and performance of a legendary vacuum tube microphone, at a fraction of their original cost.

For the first time, the superior technology of these classic microphones is affordable even to the most modest project studios. With the superior rugged construction and unparalleled warmth, presence, and clarity of the original classics but with unbeatable affordability the TCM 1150 studio vacuum tube condenser microphone delivers both superb sound and unsurpassed value.

This superior microphone is perfect for recording studio vocals, acoustic instruments, orchestras and choral groups,ambient instrument audio, and many live sound applications.

Powerful and versatile, the TCM 1150 meets the stringent requirements of even the most demanding digital recording and live broadcasting applications.



Nady TCM-1150 Features

  • Ideal for the most demanding applications, including all forms of vocal and instrument pickup
  • Gold-sputtered, ultra-thin (1 diameter) mylar dual diaphragm
  • Tube preamplifier circuitry with 6072 vacuum tube (a classic 12AT7 specially selected for low distortion, superior signal-to-noise ratio and minimum sensitivity to mechanical vibrations)
  • Special output transformer designed for ultra transparency
  • Almost all brass parts for years of studio workhorse reliability
  • Power provided by a dedicated AC power supply with balanced XLR output for connection to any mixing console (no phantom power required)
  • Nine different polar patterns remotely selectable on power supply for ultimate versatility in use and ease of operation: omnidirectional, cardioid, figure 8, and six intermediate stages
  • Supplied complete with Padded Case, TMPS-2 power supply/pattern selector unit (with switchable 115/230V operation), 30'/ 7-pin XLR cable, elastic spider shockmount, and foam windscreen

Nady TCM-1150 Specifications

TYPE
True condenser pressure gradient microphone with 1 inch (25mm) diameter dual diaphragm and vacuum tube pre-amplifier
Capsule capacitance: 50 pF
POLAR PATTERN
Omnidirectional, cardioid, figure 8, and six intermediate stages (silent switching)
SENSITIVITY
Open circuit sensitivity @1KHz: -36dBV +/-2dBV (0dBV=1V/Pa) for all patterns
FREQUENCY RANGE
20 to 20000Hz
IMPEDANCE
< 200 Ohms
RECOMMENDED LOAD IMPEDANCE
1000 Ohms
MAXIMUM S.P.L. (THD 1% 1KHz)
134 dB
EQUIVALENT NOISE LEVEL TO IEC 268-4
Equivalent noise level (A weighted) 18 dB-A
S/N RATIO RE 1PA
74dB
POWER REQUIREMENT
Dedicated TMPS-2 powering unit (115/230VAC selectable)
CONNECTOR
7-pin XLR (gold plated)
MIC CABLE
7-pin XLR cable (XC-7P), 30 ft (10 m)
Vacuum Tube
6072 (selected from 12AT7)
WEIGHT
Net Weight 30.33 oz (860 g)
TMPS-2 Dimensions and Weight: 2" X 5.5" X 7" (51mm X140mm X 178 mm), 3.25 lbs (1.46 Kg)
DIMENSIONS
Diameter: 1.8" (46 mm), length: 9.45" (240 mm)
